Best prices 300m-600m drilling depth hydraulic water well drilling rig machineIntroduction:

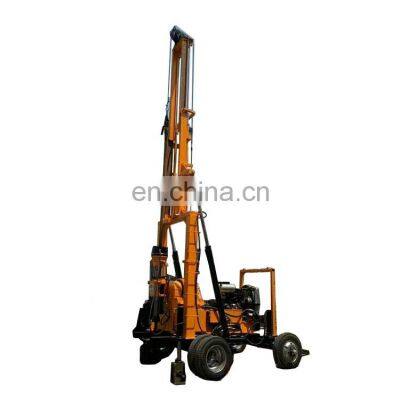

XYX-3 Trailer-mounted Water Well Drilling Rig is type of vertical shaft drill, which can be powered by diesel engine or electric motor. It is mainly used for diamond bit drilling and carbide bit drilling of solid bed. It also can be used in exploring drilling and base or pile hole drilling.
XYX-3 water well drilling machine is a lightweight drilling rig and is fed by hydraulic. This machine is widely used in construction work such as exploration, railway, highway, port, bridge, hydropower, tunnel, water well, building, engineering geological prospecting, heavy caliber drilled pile and minor-caliber diamond core drilling.
Performance characteristics:
pact size and light in weight of mechanical transmission, major diameter of vertical shaft, long distance of support span and
good rigidity, hexagonal Kelly ensure the torque transfer.
2.High speed and suitable range of speed to meet varies need of small diameter diamond bit drilling, big carbide bit drilling and all kinds of the engineer holes.
3.Hydraulic systems can adjust the feeding pressure and the speed, so it can satisfy the drilling in various stratums.
4. Pressure gauging can make you get the information about the feeding pressure at the end of the hole.
5.Transmission and clutch of Automobile are choice in order to achieve the good generalization, easy repairing and maintenance.
6.Close levers, convenient operation.
7.The spindle has the octagon section so give more torgue.
Specification
item
| Orange XYX-3
|
Applicable Industries
| Construction works , Energy & Mining, Other
|
Condition
| New
|
Type
| Rotary Drilling Rig
|
Power Type
| Diesel
|
Place of Origin
| Henan
|
Brand Name
| Orange
|
Usage
| Water Well
|
Voltage
| No need
|
Dimension(L*W*H)
| 2.9*2.56*3.3
|
Weight
| 3600kg
|
Certification
| ISO9000
|
Warranty
| 1 YEARS
|
Marketing Type
| New Product 2020
|
Video outgoing-inspection
| Provided
|
Warranty of core components
| 1 Year
|
Core Components
| Motor, Pump, Other, Gear, Engine
|
Drilling Diameter
| 300mm, 50mm, 75mm, 60mm, 100mm, 200mm
|
Drilling Depth
| Max 600m
|
Mobility
| Easy move
|
Model
| XYX-3
|
Open hole dia.
| Max 325mm
|
End hole dia.
| Max 75mm
|
Drill angle
| 90-75
|
Spindle Speed
| 32-1057r/min
|
Spindle Stroke
| 600mm
|
Winch max pull force
| 3000kg
|
Winch pull speed
| 0.3-1.9m/s
|
Drill mast rated load
| 18 ton
|
Drill mast height
| 6.5m
|
Packing & Delivery
Related Products
Why Choose Us
About Us
Customer Photos
Exhibition
Certifications
Packaging & Shipping
1.We can load container at:qingdao,shanghai ,ningbo,tianjin,guangzhou etc.2.Orange provide shipping method:Courier service,Air transport,Sea Transport3.Can accept oder:Full container cargo load,Less container load4.Our service:EXW,FOB,CIF,CNF,Door to Door etc.5.We always choose the most economical and reliable shipping company to make sure you receive the goods in time.6.The tracking number will be provided to you once the consignment is shipped.
Our Service
After Sales Service
1.All the products have one year guarantee. 2.Providing professional installation instructions and video of troubleshoot.3.We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.4.When some problems can’t be solved by customers, our engineer can go to door to support.
FAQQ1: What are the payment terms?A: We usually accept payment by T/T, L/C, Western Union or Escrow.Q2 : Can any of the products be custom imprinted?A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to customize for you. Q3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?A: We are alibaba legitimate certification company (VIP), and we support payment terms like L/C, Escrow, to ensure your safety.Q4: How to ensure that I received the machine undamaged?A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!Q6 : Where will the orders be shipped from?A: It will ship from the main ports China. And We will find the shipping company which will offer the best and most economical freight for our customers.
Custom servicesWe provide the customized service. Please contact me freely.Peter Cao
