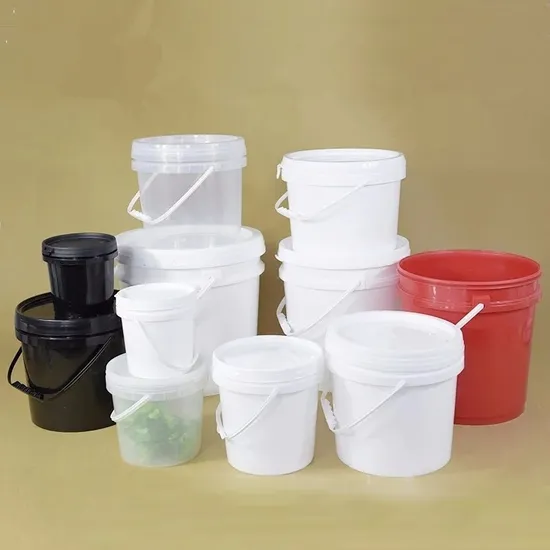

Haida Hdx658 Injection Machine Fixed Motor Bucket Making Machine

Product Description

Product Description
INJECTION SYSTEM
Injection molding is stable, easy adjustment.
CLAMPING SYSTEM
Efficient and accurate positioning.
THE CONTROL SYSTEM
All monitoring, full control
THE HYDRAULIC SYSTEM
Ease of maintenance, compact structure.
Detailed Photos

HDX series injection molding machine has advantages:
1. Broad scope of applicaton
From the high-throughput production process to a large amount of technical parts, thin wall injection molding parts, HDX series fully demonstrated its reliability in daily use, and it is proved again and again.
2. The stability of the mature and reliable
Durable and running stability
3. The high performance to Price Ratio
concise and effective, rapid flexible, manipulation of the simplified, simple maintenance

Product Parameters

HDX658
ITEM		UNIT	DATA
Injection Unit	Screw Diameter	mm	85	90	95
	Screw L/D Ratio	L/D	21.2	20	19
	Injection Volume	cm3	2485	2786	3105
	Shot Weight	g	2261	2535	2826
	Injection Pressure	Mpa	182	163	146
Clamping Unit	Clamping Force	KN	6580
	Opening Stroke	mm	920
	Space Between Tie-Bars	mm	915x915
	Mould Thickness(Min-Max)	mm	350-860
	Hydraulic Ejection	KN	152
	Ejector Stroke	mm	250
General	Pump Pressure	Mpa	16
	Motor Power	KW	30+30
	Heater	KW	34
	Machine Dimension	m	9.3x2.3x2.4
	Machine Weight	T	28
	Mould Orientation Ring Diameter	mm	Φ200
	Nozzle Radius	mm	SR15

Packaging & Shipping
After Sales Service
Company Profile
Ningbo Haida Plastic Machinery Co.,ltd is a manufacture specilized in manufacturing HAIDA series automatic plastic injection molding machine, vice president of China Plastic Machine Industry Association.
Established in 1992, the company has been devoted to development, production and sales of efficient, personalized and cost-effective injection machine.
-One of TOP 10 enterprises in plastic injection machine industry of China, company area over 2,000,000 square meters; Over 500 employees;
-Passed ISO9001, ISO14001, OHSAS18001 and CE Certification;
-Stronge R & D capability. More than 100 types of injection machine from 50 tons to 3300 tons are in production.
-More than 60 sales and service agencies at home and abroad.

---
