| US$5,000.00 | 1 Piece (MOQ) |
| Specification of 30m3/h diesel concrete pump | |||
| Items | Units | Parameters | |
| BS30-10-56R | |||
| Performance of the whole machine | Max. theoretical concrete output | m3/h | 30 |
| Main hydraulic pump | | Rexroth | |
| Max. concrete pumping pressure | Mpa | 10 | |
| Distribution valve type | | S valve | |
| Concrete conveying cylinder bore*stroke | mm | Ф140×1200 | |

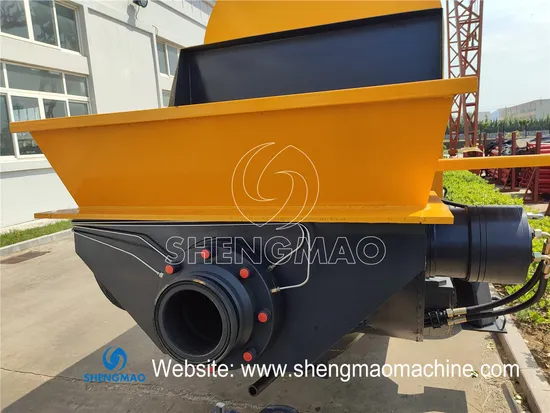

| Hopper capacity | L | 400 | |
| Feeding height | mm | 1200 | |
| Outlet diameter | mm | Ф100 | |
| Power system | Diesel engine model | | Delier 4100 |
| Diesel engine power | kw | 56kw | |
| Rated rotating speed | r/min | 1800 | |
| Hydraulic system | Hydraulic circuit form | | Open circuit |
| Pumping system oil pressure | Mpa | 26 | |
| Mixing system pressure | Mpa | 6-8 | |
| Capacity of oil tank | L | 260 | |
| Max. concrete delivering distance (vertically/horizontally) | m | 120/500 | |
| Other parameters | Max. aggregate diameter | mm | 20 |
| Inner diameter of delivering pipe | mm | Ф100 | |
| Overall dimension: length*width*height | mm | 4500*1750*1600 | |
| Total weight | kg | 2500 | |
| Pre-Sales Service * Providing solution for your construction project; * Providing design drawing as per your requirements; * Providing professional quotation for your inquiries. | After-Sales Service * Machine installation and test running; * Operators trainning and spare parts supply; * Machine problems solving (by phone or job site visiting). |
| Packaging | |
| Size | 4800 (L) * 1850 (W) * 1700 (D) |
| Weight | 4.5 T |
| Packaging Details | The concrete mixer pump will be delivered in container. It will be fixed inside container by steel wires to prevent it from bumping into container during shipment; Some small parts will be packed with carton box. |
| HBTS10R Diesel Concrete Pump Capacity: 10 m3/h | HBTS20R Diesel Concrete Pump Capacity: 20 m3/h |
| HBTS40R Diesel Concrete Pump Capacity: 40 m3/h | HBTS60R Diesel Concrete Pump Capacity: 60 m3/h |
| HBTS80R Diesel Concrete Pump Capacity: 80 m3/h | HBTS90R Diesel Concrete Pump Capacity: 90 m3/h |
| Concrete pump with crawler Capacity: 30m3/h to 90m3/h Both diesel type and electric type are available | Concrete pump with trailer Capacity: 30m3/h to 90m3/h Both diesel type and electric type are available |
