Vertical Manual Radial Drilling Machine Z3050 Hydraulic Radial Drilling Machine

Product Description

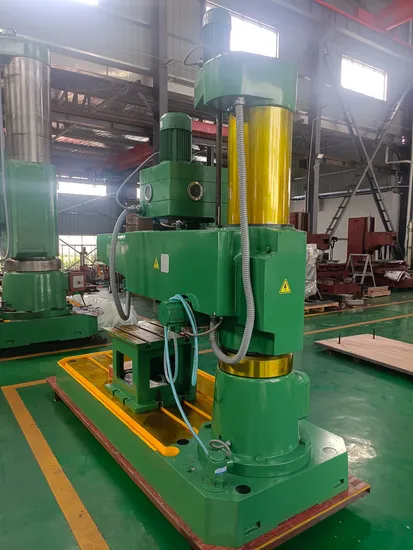

Radial drilling machine Z3050×16
Z3050×16 radial drilling machine, is a new series of multi-functional products designed and manufactured by referring to international standards. The machine tool adopts hydraulic pre-selected variable speed; Headstock, rocker arm and column are clamped by hydraulic pressure; The main shaft turns forward and backward, stops (braking), and operates with a handle in neutral. It has the advantages of perfect performance, safe use, reliable, convenient, easy maintenance, high precision, good rigidity, long life and so on. It is used for drilling, reaming, reaming, tapping and boring. Widely used in machining various parts.
one Technical parameters
1, the maximum drilling diameter of 50 mm
2, the spindle center line to the column bus distance maximum 1600 mm; Minimum 350 mm
3, the spindle end face to the base working face distance maximum 1215 mm; Minimum 315mm
4. The horizontal movement distance of the headstock is 1250 mm
5. The lifting distance of rocker arm is 600 mm
6, the rocker arm lifting speed 1.2m/min
7. Swing Angle of rocker arm ±180°
8, spindle cone hole (Mohs) No.5 Morse.
9, spindle travel 315 mm
10. The depth of the dial rotary drilling hole is 122.5mm.
The maximum torque allowed by the spindle is 500N·m
12, the maximum allowable feed resistance of the spindle 18kN
13, spindle speed series 16
14, spindle speed range 25-2000 r/min
15, the main shaft feed series 16
16, the spindle feed range 0.04-3.2mm /r
17, the main motor power 4 kw
18, voltage 380, 440/220 V
19, the net weight of the machine tool 3500 kg; Gross weight 4200 kg
20, machine outline dimensions (L * W * H) (219)249 (289)*104*(243)284 cm
Packing box size (L * W * H) (240)260(310)*110*255 cm
Second, the main structure and performance characteristics of the machine tool
1, the main parts of the machine tool
Machine tool is mainly composed of: spindle transmission mechanism, spindle feed transmission mechanism, spindle feed and control mechanism, spindle box clamping mechanism, spindle and balance mechanism, column clamping mechanism, rocker arm lifting and clamping mechanism, hydraulic system and so on.
2, structure layout
Z3050×16 radial drilling machine adopts the traditional radial drilling machine structure. Performance and features:
1), the use of hydraulic variable speed mechanism, can save auxiliary time;
2), the spindle positive and negative rotation, parking (braking), speed change, neutral with a handle control, easy to operate;
3), all the control handle is centrally placed in a very convenient part, easy to operate;
4), spindle box movement and swing arm rotation light, flexible;
5), the headstock, the rocker arm, the inner and outer columns are hydraulically driven diamond block clamping mechanism, the clamping force is large, the displacement of the main shaft before and after clamping is small, and the inner and outer columns of the headstock can be relaxed by clamping alone or jointly;
6) The upper guide rail of the rocker arm, the spindle sleeve and the inner and outer column rotating roller mating surface are treated with surface quenching, which can extend the service life of the machine tool;
7), there are perfect safety protection devices and external column protection devices. For example, the rocker arm lifting has an insurance mechanism, limited spindle insurance, the main drive excess torque friction insurance clutch, the feed has a steel ball insurance clutch, the outer column has a dust ring, power grounding, etc., can ensure the safe work of the machine tool;
8), the change of electrical box cover clamshell mode, so that the installation and maintenance of electrical appliances more convenient, more ornamental appearance;
9), the circuit changes the way of wiring, the electrical operation button is centralized, which makes the machine safer and more convenient to operate.
4. Safety protection
Machine tool safety and protection in line with GB15760 metal cutting machine tool safety protection general technical conditions. Machine tool electrical in accordance with GB/T5226.1-96 "General technical conditions for industrial machinery electrical equipment" requirements.
two Packing list
Gross weight of machine: 4200kg Net weight of machine: 3500kg
Box size (L × W × H) : 260×110×255 cm

one Technical documents
Serial number	Specifications and models	Name	Quantity		remark
1		Instruction Manual	1 copy
2		Certificate of conformity	1 copy
3		Packing list	1 copy
4		Repair Parts catalog	1 copy
two Host
1	Z3050×16	Radial drilling machine	1 set
Three. Accessories and Tools
1	630 * 500 * 500	Workbench		1 piece
2	M24; J11-1	Fine hex nuts		10 pieces
3	M24×120; J29-1	Bolts for T-slots		4 pieces
4	24. J51-1	Washers		6 pieces
5	M24 x 400; J23-8	Anchor bolts		6 pieces
6	1,2; SZS S81-1	Retraction deed		1 piece
7	3; SZS S81-1	Knife Return Deed		1 piece
8	4. SZS S81-1	Knife Return Deed		1 piece
9	90; SZS R99-1	Oil Gun		1 piece
4. Spare parts and wearing parts
1	mat	6; ZSZ G91-2	4 pieces
2	mat	8; ZSZ G91-2	4 pieces
3	mat	10; ZSZ G91-2	2 pieces
4	Type 0 Rings	9 x 1.9; G51-2	5 pieces
5	Type 0 Rings	11 x 1.9; G51-2	5 pieces
6	Type 0 Rings	13 x 1.9; G51-2	2 pieces

Three. The main configuration of the machine tool (origin)
1. Motor Dandong Shanchuan Jiang Su Guanshun Shanghai Yunba
2. Bearing Harbin Bearing Factory
3. Screw self-produced
4. Electric Chint, Delixi

---
