Efficient Semi-Solid Battery Mixer with High-Speed Mixing Paddle

Product Description

Product Description Main configuration: Our High-Performance CMC Mixing Pre Stirring Tank is equipped with state-of-the-art technology and components, meticulously selected for their exceptional performance and reliability. Each element of the configuration has been designed to seamlessly integrate, offering unmatched operational excellence.

No.	Item	Configuration
1	Equipment appearance	A3 Paint,International warm grey color 1C
2	Three phase asynchronous VFD	Standard configuration
3	Motor VVVF	Standard configuration
4	Lift mechanism	Optional
5	Upper and lower liquid level detection	Optional
Note: If there are special requirements or additional/reduced items (such as adding/reducing pipe openings), please provide additional explanations. The main switch power cord of the equipment inlet box and the hot and cold water pipes connected to the mixing tank interface can be prepared by the customer themselves.

Product Parameters Working principle and relevant parameters: Harnessing advanced stirring mechanics, our tank operates on a principle that guarantees uniform mixing and superior homogenization. Relevant parameters are precisely tuned to adapt to various production demands, ensuring optimal performance at every stage.

Usage	This model is mainly suitable for pre mixing solvents such as PVDF and NMP

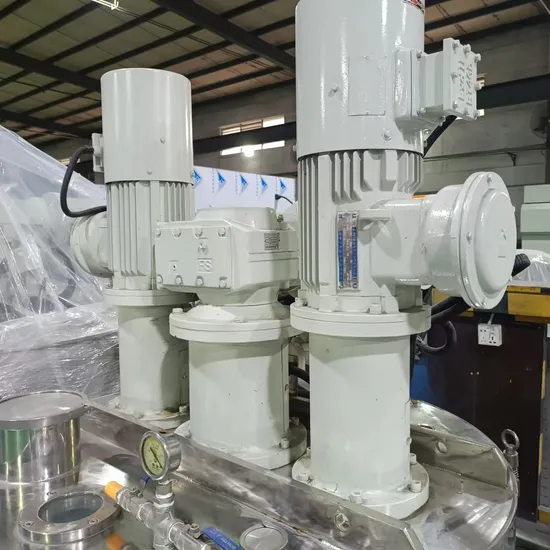

Working principle	The power on signal is given through the control panel, and the mixing head of the premix tank is operated at the set speed. The mixing head of the premix tank is composed of a transmission part connected by three sets of motors on the barrel cover, which drives a set of low-speed mixing blades under the barrel cover and two sets of high-speed dispersers to operate. The mixing paddles and dispersers rotate independently in the mixing tank, and the mixing and power are driven by different motors, which can achieve independent stepless speed regulation.
Equipment Composition	Transmission part, sealed container, control system, etc
External dimension	1000mm x930mm x 1900 mm (L x W x H)
Tank specification	Internal diameter φ700mm depth 400mm
Design capacity	265L
Efficient usage capacity	200L
Mixing paddle speed	0-40 rpm, VVVF
Disperse disk speed	0-1400 rpm, VVVF
Mixing power	4 KW
Dispersing power	2.2 KW (Two groups 3KW)
Weight	About 0.85 ton

Equipment capacity: Boasting an impressive capacity, our CMC Mixing Pre Stirring Tank is designed to handle substantial volumes with ease, offering scalability and flexibility to meet your growing production needs. Trust in its robust design to support extensive operation without compromising on quality.

Item	Capacity
Applicable viscosity	Viscosity ≤100Kcps
Applicable solvent	NMP, deionized water, etc
Applicable additive	SBR,CNT,etc.
Applicable powder	PVDF,CMC
Failure rate	≤2%,
Bearing temperature	7ºC~80ºC,Customer is required to provide circulating hot and cold water
Measuring accuracy	±2ºC,Customer is required to provide circulating hot and cold water
Inner barrel pressure resistance	Long term water pressure ≤ 0.3Mpa, no deformation or leakage phenomenon
Not applicable	Acetone solvent

Other optional models: Explore a diverse range of optional models tailored to fit different production requirements. Each model is crafted with the same commitment to excellence, providing you with versatile solutions to enhance your battery production capabilities.
Detailed Photos
After Sales Service
FAQ If I place an order, what is the usual delivery time? -About 45-60 days How do you meet my needs.You need to tell us your production capacity, mixing materials, and the remaining requirements mentioned in particular. We will provide you with a solution based on your needs. At the same time, we will establish a dedicated production technology engineering communication and discussion group to ensure worry free throughout the process. Can you provide on-site installation and debugging services?
Yes, our company can send engineers to your local workshop to guide installation and commissioning, provide training, and accompany production.

---
