Plastic Pet Bottle Washing Flakes Hot Recycling Line Washing Machine

Product Description

Plastic Pet Bottle Washing Flakes Hot Recycling Line Washing Machine
This PET bottle scrap washing line mainly used for dealing with waste PET bottle, HDPE Bottle, LUMP, PP barrel etc.
To separate PET bottles to flakes from PE/ PP label, cap, oil, garbage, protect the environment, avoid white pollution.

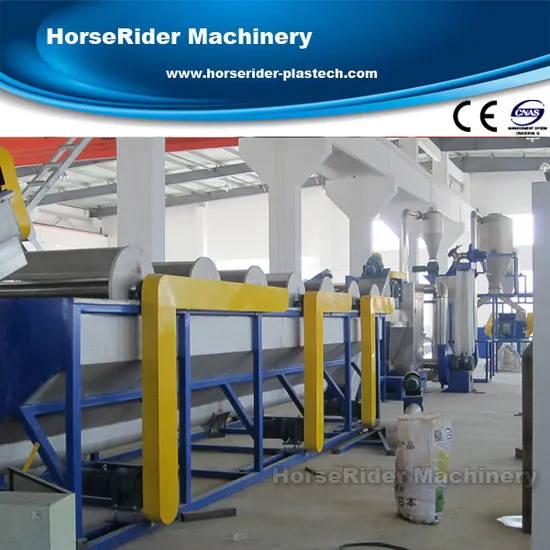

This PET bottle washing machine is composed of separator, crusher, cold & hot washing system, dewatering, drying, packing system, etc.
This PET bottle flakes crushing, recycling and washing production line can easily wash and recycle waste PET bottle flakes. Waste and dirty PET bottle flakes can be treated step by step by this facility. It is special for washing PET bottles flakes. We can help to attach equipment at the end of the washing line so that the completely dry flakes can be collected and packed directly after be washed.
Work flow of plastic bottle recycling machine
Conveying raw material--Crushing with water-- Feeding --No. 1 Rising washer--Feeding --Agitating washer--Feeding--Horizontal frication washer --No. 2 Rising washer --Feeding--No. 3 Rising Washer--Feeding--Dewater machine--Pump conveying system--Hopper

Input capacity	500kg/h	1000 kg/h	2000 kg/h
Workshop(M*M*M)	42 (L)×10(W)×6(H)	55(L)×15(W)×6(H)	70(L)×18(W)×6(H)
Ancillary staff	6Persons	8 Persons	12 Persons
Installation power	156KW	307KW	420KW
Water Consumption:	2Ton/h	3.5Ton/h	5 Ton/h
Final product	Moisture: max 1% Bulk density: 0.3G/CM 3 Particle size: 14-18mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 100-320ppm	Moisture: max 1% Bulk density: 0.3G/CM 3 Particle size: 14-18mm Metal content: max. 20oom Floatable contamination: less than 200ppm Total impurity: 100-320ppm	Moisture: max 1% Bulk density: 0.3G/CM 3 Particle size: 14-18mm Metal content: Max. 20ppm Floatable contamination: less than 200ppm Total impurity: 100-320ppm

Zhangjiagang sevenstars is located in Zhangjiagang city, China, a beautiful and famous city for all kinds of plastic machine.
We have 17000 square meters land and new modern workshop, we mainly development, design, manufacture and marketing plastic pelletizing machine, plastic recycling machine, pet bottle recycling machine, PVC pipe making machine, PE pipe making machine, PVC foam board production line, plastic granulator, plastic shredder, plastic pulverizer, Plastic agglomerator, single shaft shredder, double shaft shredder, plastic crusher and so on. By the several years developing, we grown up to a middle scale company in China plastic industry.
As one of the reliable supplier in China, We have keeping improved our management and technology level. Up to now, we have earned good reputation in domestic and abroad market. And our products have been exported to many countries, like mexico, America, Argentina, Chile, Brazil, Russia and so on.
Quality and honest is our foundation, customer satisfactory is our job, to get "Win-Win" is our main targe. We always focus on improving our quality. And we have buit up a professional after-sale services team with rich-experienced in machine commissioning and installation. We believe our quality and service will bring success to each customer.
Welcome final users and distributors from all the world contact with us and create success.
With your support and our effort, we deeply believe that the tomorrow of sevenstar will be much better.

---
