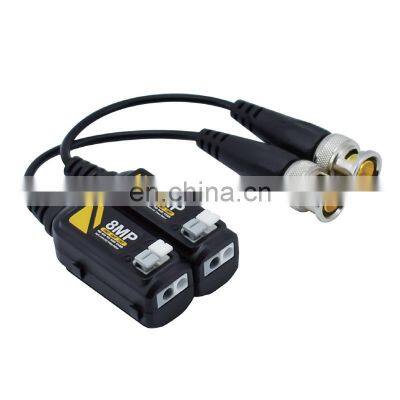

HD 8MP BNC Video Balun for CVI/ TVI/ AHD/ CVBSProducts Description• The CF-401 video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via cost-effective Unshielded Twisted Paired (UTP) cable. The CF-401 is compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras.• The CF-401 has a mini-coax pigtail lead which allows quick mounting onto fixed cameras, allows in-camera mounting in most dome cameras and allows flexible connection with DVR. Reliable Screw terminals block connection,the CF-401 eliminates costly and bulky coaxial cable.PropertiesTransmission signal1 channelTransmission distanceAHD/CVI:400m(max), TVI/CVBS:300m(max)Category TypeUTP CAT5/5E/6Video transmission Properties and PortCoaxial video connectorBNC-MaleTwisted-pair Video ConnectorPush-terminalCompatible FormatCVI/ TVI/ AHD/ CVBSResolution720P/ 960P/ 1080P/ 3MP/ 4MP/ 5MP/ 8MPAnti-interference>60dbImpedanceBNC Male75 OhmsUTP Cable100 OhmsPackagingQty/Ctn250 pairsCarton size58*48*25 cmCarton weight15.5 kgSimilar ProductsTrade ShowCertificationsFAQQ1:Are you a trading company or manufacture?A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last. Q2:What is your delivery time?A2:Normally,our delivery time is 15-20days after get your deposit. . Q3:What is your MOQ?A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually. Q4:What is your general payment term?A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery. Q5: Can you produce the specfic cable strictly according to clients' requirement?A5: Yes, we have professional technical team, so we can do ODM for customers. Q6: Where you are located?A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou. If you intersting in our cables, pls send the enquiry now!!!Free sample will be deliveried to your address soon!!Contact us
>>
