High Speed Automatic Toilet Paper Making Machine at a Good Price

Product Description

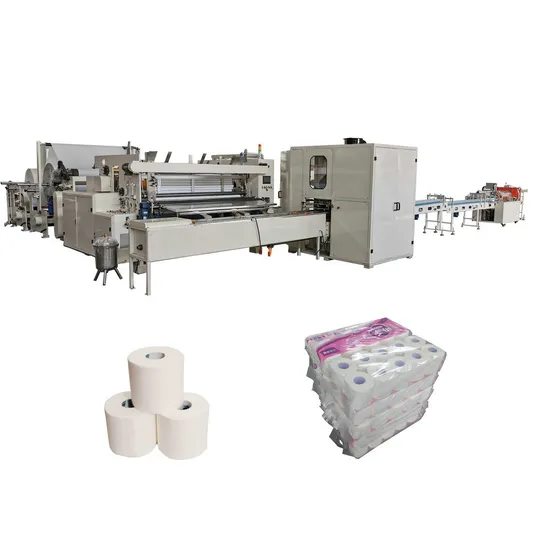

XY-TQ-A-D Full Automatic High Speed Toilet Tissue Making Machine Production Line
Outline
This production line consists of Wall Type Automatic Rewinding Machine, Double Channel Log Saw and Semi-automatic Packing Machine. From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It's best choice for the producing hygienic paper products.
Video Link:https://youtu.be/VYvm5NK-RFI
https://youtu.be/R2ZMkJV-uTs

XY-TQ-B Full automatic toilet paper and kitchen towel machine
An automatic toilet paper rewinding machine is for toilet paper roll processing. The machine has a core feeding unit and can do both
with and without a core. Raw material from the jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue to become a log. Then it can work with a cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through a touch screen, the whole process is automatic, easy to operate, lowers the man cost. And Our machine can be specially made according to clients' requirements.
The production process is: Unreeling - Embossing - Perforating- Lamination- Rewinding- Tail-gluing- Edge trimming---Automatic core loading.
Video Link:https://youtu.be/51rvoXKMnyM
https://youtu.be/AGK_zPEfFNE
Feature And Functions 1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying, and sealing synchronously at one time. Leaving a 10-18mm tail, easy
to rewind again, so reducing shortcut waste and saving the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have a bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
Product Parameters

Model	XY-TQ-B
Jumbo Roll Width	1750mm (Other size can be specified)
Jumbo Roll Diameter	Φ1200mm(Other size can be specified)
Jumbo Roll Inner Core Diameter	3inches(76.2mm)
Perforation Distance	4 anvil Blades(115mm.,230mm)(Other size can be specified)
Finished Product Diameter	Φ80~φ280mm
Finished Product Inner Diameter	φ38~φ76mm
20Production Speed	200-230m/min
Program Controller	PLC
Jumbo roll paper stand	1 or 3 Stands(Need to be specified)
Pneumatic System	0.5~0.8MPA(Provide by user)
Main Power	18KW
Overall Dimension	10000*3000*2000(L*W*H)
Weight	About 12T(wall board structure)(Other size can be specified)
Jumbo Roll Layers	1~3plys,14~30gsm Toilet paper or kitchen towel
Edge-Line Embossing(can be specified)	Steel to steel (Pneumatic Control)
Embossment (can be specified)	Steel to Rubber, Double Sets
Voltage	380V 50HZ

XY-AI-280 Full Automatic Double Channel Log Saw
XY-AI-280 Double Channel Log Saw Machine is used for cutting the toilet paper roller and kitchen towel paper roller, it's with high automation and is efficient. Adopts advanced servo driving system, frequency conversion speed regulating, PLC control, and touching screen operation.
Video Link: https://youtu.be/ixtpPOdfbWQ
https://youtu.be/7aedekNUnX4 Technical Parameters

Model	XY-AI-280 Log Saw Machine(Double Channel)
Jumbo Roll Width	1750~2800mm (other size can be specified)
Jumbo Roll Diameter	Φ105~φ115mm(Other size can be specified)
Design Speed	150 cuts/min
Stable Speed	100 cuts/min
Grinding System	Pneumatic Sharpen, grinding time can be set
Driving System	Delta/Mitsubishi Servo Motor
Power	11KW
Overall Dimension	6500*2500*2000mm (Other size depends on model and configuration)
Blade Diameter	φ610*4.7mm
Voltage	380V 50HZ
Weight	About 4500KG

XY-AI-398A Semi-automatic multi-toilet paper packing machine
This machine work with toilet paper rewinding machine, it is customized, can special made to meet different market requirements. It's easy to operate: Insert the prefabricated bag into the output hole, and press the jog switch, and it will automatically put rolls into the bag, meanwhile cutting and sealing.
Video Link: https://youtu.be/KpOT8lYnc8Y
https://youtu.be/uL3idZKT7eg
Function and Features
1. Multi-function: automatic conveying, single-head operation, automatic feeding, automatic sealing, automatic countering. 2.Adopting the advanced PLC computer programming control and employing the liquid crystal text to display parameters, it is with simple set and water cooling control. Moreover, its temperature control is more precise so that heating wires and tapes with thermostability can be protected more efficiently. The machine uses the servo motor to push the products to the bags, it causes to locating of the products more accurately. 3. Packing and sealing are pretty and tidy. The machine can be operated with full-automation and semi-automation. The machine with conveyor can be connected with automatic toilet roll packing machine with conveyor. This allows the machine have high capacity and therefore to save the labor and reduce production cost. 4. Capacity: 8-12 bundling bag/min, 1 labor only to pack. 5. Suitable for core or coreless toilet roll. The machine cannot proofread color code automatically. 6. Comprehensive design, rigid frame, and imported major components, allow our machine to work steadily and efficiently, and therefore this makes our machine have a long life. Technical Parameters

Model	XY-AI-398A
Air supply	0.6Mpa
Power supply	4Kw 380V 50HZ
Speed	8-12 bundling bag/min
Single roll size	Diameter:Ø90-120mm Height:90-140mm
Bundling Size(L*W*H)	(360-650)*(180-240)*(90-140)mm
Machine size(L*W*H)	5000*1000*1500mm

XY-SD-B Automatic Roll Core Making Machine Roll core machine is for making the paper core inside the toilet paper roll. It consists of three parts: raw material stand, glue unit, rewinding and cutting unit. It can make different thickness and different diameter paper core by changing the model. This machine easy to operate, running stable, can work with toilet paper rewinding machine.
Video Link: https://youtu.be/FPs5hNn_DzE
https://youtu.be/Eyy6MBUFKBM Function and Features 1. Inverter control to ensure the accuracy of the length of paper tube. 2. Automated online on the plastic, paper tube, and cut-off. 3.Product diameter and length can be customized according to customer needs. 4. Products are widely used in toilet paper. Plastic and textile industry. 5. The machine has reasonable design. operation simple and convenient maintenance. Technical Parameters

Production speed	15 ~ 20m / minutes
Kraft paper width	50-105 mm
Paper Tube diameter	20mm~100mm (can be customized)
Paper tube layers	2 ~ 30 layers
Paper grams amount	150-400 gsm
Reel Length	800-3000 mm
Defect rate	≤2%
Power	4.5KW 380V 50HZ
Equipment Size(L*W*H)	main machine: 2950*1700*1800mm glue buckets device: 1250*850*1200mm
Weight	1500Kg

Packaging & Shipping
After Sales Service Why choose machines from Fujian Xinyun Machinery Development Co., Ltd?
1. Good quality machine at a reasonable price.
2. Good service: Any question from a customer will be replied to within 24 hours.
For all the machines we sell, we will offer a one-year guarantee for free and all life-long maintenance.
We deliver a USB dish of Operation Video with the machine, which will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
The buyer shall pay for their round-trip air tickets from China factory to the buyer's factory, the charge of visa, food, transportation, and accommodation in the buyer's city.
Company Profile Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome contact me for more information.

---
