Vmc850 High Speed 5 Axis Vertical Milling CNC Machining Center

Product Description

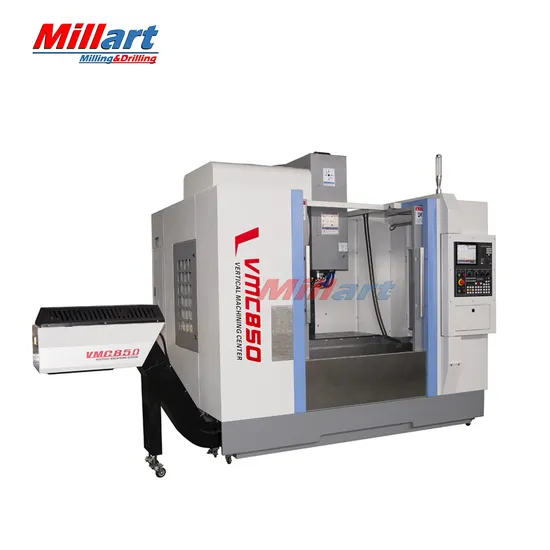

VMC850 High Speed 5 Axis Vertical Milling CNC Machining Center
Main configuration & accessories:
1. Resin sand casting, Meehanite HT-300;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Roller type linear guideway from Taiwan
5. Ball lead screw from Taiwan
6. Standard with belt driven spindle, optional for direct driven spindle;
7. Taiwan pneumatic cylinder;
8. Taiwan ATC, umbrella type and disc type are available;
9. Import bearings for leadsrews;
10. Import coupling;
11. Headstock Nitrogen balance system as option;
12. Full enclosed cover;
13. Rigid tapping;
14. Spindle center ring blast;
15. Work lamp;
16. Pilot lamp;
17. USB and Internet interface;
18. Manual pulse generator (MPG);
19. Centralized automatic lubrication system.
20. Cooling system.
21. Heat exchanger for electrical cabinet ;
22. Leveling blocks & bolts;
23. Toolbox and tools;
24. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Technical parameter:

Item	Unit	VMC850
Capacity
X axis travel	mm	800
Y axis travel	mm	500
Z axis travel	mm	500
Spindle nose to worktable	mm	150-650
Spindle center to column	mm	550
Leadscrew and guideway size
Leadscrew diameter X,Y,Z	mm	Φ40
Linear guideway width X,Y,Z	mm	35/35/35(Roller)
Worktable size
Worktable Length	mm	1000
Worktable width	mm	500
Max loading capacity	kg	500
Spindle
Spindle taper		BT40-150
Spindle speed	rpm	8000
Main motor power	kw	7.5/11
Feeding system
Fast moving speed (X/Y/Z)	m/min	48/48/48
Cutting speed	mm/min	1-10000
Feed motor power	N/M	12/12/22
Tool Magazine
Capacity	pcs	Umbrella 16
Max tool diameter	mm	100
Max tool weight	kg	6
Max tool length	mm	250
Accuracy
Positioning accuracy	mm	0.008
Repeat accuracy	mm	0.005
Machine dimensions
Length*Width*Height	mm	3000*2300*2900
Net Weight	kg	4500

Standard accessories:

Fanuc 0i TF control system

Taiwan Spindle: 8000rpm

X/Y/Z axes: Fanuc servo drive motor

Main motor: Fanuc spindle motor

16 tools Umbrella type

3-Axis linear guideway from Taiwan Hiwin

Ball leadscrew from taiwan Hiwin

USB for information transfer

Rough cutting of thread

Full closed cover

Automatic lubrication

Coolant system

Work lamp

Tri-color indication lamp

Air gun

Heat exchanger in cabinet

Optional accessories:

Automatic chip conveyor & chip bucket (Chain type)

Automatic chip conveyor & chip bucket (Screw type)

Spindle direct driven, speed 12000 rpm

Spindle oil cooling

Spindle center water spray

24 tools disc type

Nitrogen balance cylinder

Air conditioner for electricity cabinet

4th Axis or 5th Axis
