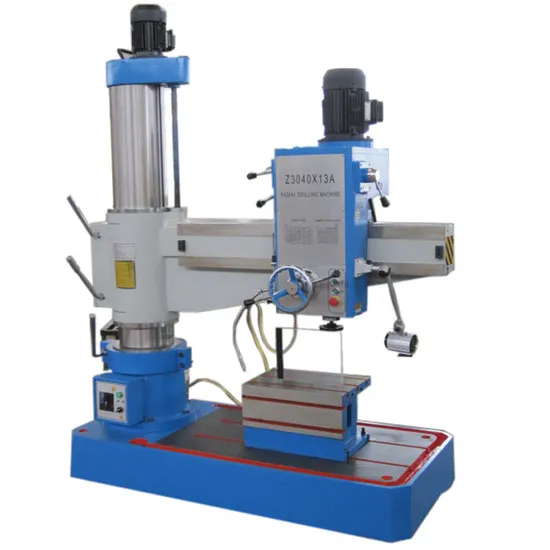

High Quality Universal Mechanical Radial Drilling Machine for Sale

Product Description

High quality universal mechanical radial drilling machine for saleFeature: 1. Gather mechanical-electrical-hydraulic functions, use extensively.
2. With wide range of speed and feed, with manual,power and fine feeds.
3. The feed of machines are very easily engaged and disengagedat any time.
4. With safe and reliable feed safety machine, all parts easy operation and change.
5. All controls centralized on the head stock easy operation and change.
6. Clamping for assembli-es and speed change of spindle achieved by hydroulic power, cmle is sensitna owet nelile.
7. Main parts are made by machine center which import form KIA with high precision and efficiency,ensuring reliability and high quality.
8. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
9. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
10. Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
Standard accessories
* Box shape worktable
* Taper sleeve
* Tool releasing Wrench
* Drift
* Eyelet bolts
Special accessories
* Quick instead chuck
* Tapping chuck
* Grease gun

Model	Z3032×10	Z3040×10	Z3040×11	Z3040×13
Max drilling cpacity(MM)	32	40	40	40
Distance from spindle center to column(MM)	max:980 min:220	max:900 min:300	max:1000 min: 300	max:1200 min:300
Distance from spindle nose to base(MM)	max:1000 min:260	max:1050 min:60	max:1050 min:150	max:1100 min:230
Spindle horizontal movement	700	700	700	700
Spindle travel(MM)	120	270	270	270
Spindle taper	MT4	MT4	MT4	MT4
Spindle speed(R/MIN)	6 steps 108-1000	12 steps 46---1220	12 steps 46---1220	12 steps 46---1220
Column diameter(MM)	180	200	220	240
Spindle feed (MM/R)		3 steps 0.10 - 0.25	3 steps 0.10 - 0.25	3 steps 0.10 - 0.25
Main motor(KW)	1.5/2.2	1.5/2.2	1.5/2.2	1.5/2.2
Lifting motor(KW)	0.75	0.75	0.55	1.1
weight(KG)	650	1100	1300	1500
dimension(mm)	1400×680×2100	1500×750×2150	1650×780×2150	1830×830×2250

---
