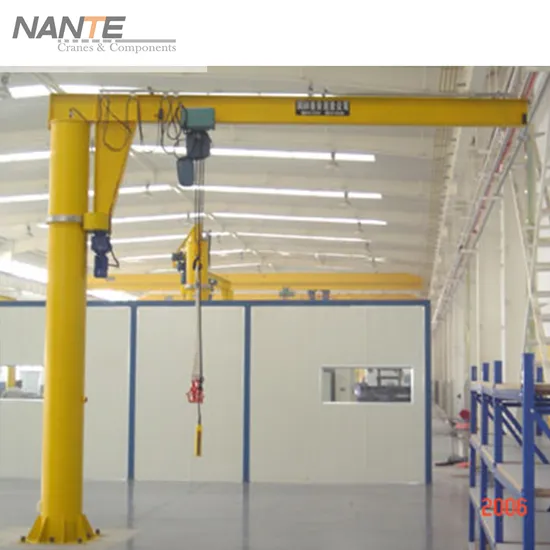

Reliable Quality Free Standing Jib Crane 5ton with Chain Hoist

Product Description

Reliable Quality Free Standing Jib Crane 5ton with Chain Hoist
Product Description
NANTE jib cranes are vital to any production process requiring speed, accuracy, and minimal downtime. Designed for a seamless user experience, they are versatile, durable, and serve almost any kind of workstation, providing support for overhead cranes on production lines, and helping to keep terminals, machining cells, and warehouses operating smoothly.
NANTE jib cranes maximize space utilization: Wall-mounted jib cranes, ceiling or wall-mounted articulating jib cranes, and wall-traveling jib cranes require no floor space. We offer models with unrivaled clearance, both above and under the boom.
With several different ways to fix the jib to the wall or floor, and a variety of hoists available, they are perfectly suited to most customer facilities. The cranes have a load capacity of up to 2,000 kg and a slewing motion that can reach 360 degrees with a pillar jib, and 270 degrees with a wall mounted jib.
Free Standing, floor mounted or Pillar Jib Cranes and Swing Jibs from NANTE are excellent quality examples of Industrial Jib Cranes manufactured to ISO 9001:2008 quality standard on a large scale to achieve maximum economies of scale which are passed on to the buyer. Choose between an modern and sleek integral system or the traditional "I" beam setup with integrated power feed system and mains isolator.
Before making an enquiry on a Jib Crane or Swing Jib you will need to take in to consideration the following points to gain an accurate quotation: SWL- Capacity of the crane Height from the floor to the underside of the Jib Arm Height of Lift (hook Path) Jib Arm Length Slewing Radius Are there any height restrictions? Hoist specifications and options. ---------------------------------------------------------Design and manufacturing features-----------------------------------------------
Design Code:
NANTE's Free Standing Jib crane follows the design code of FEM, CMAA, ISO EN, BS, GB standard.
Column:
Manufactured by seamless pipe, and equipped with emergency stop on the column.
Boom:
I beam or welded girder can be selected. Compact Design and low weight, use Q355B steel material(ISO EN S355, DIN ST52, ASTM A 572 Grade 50), welding specification follows ISO 15614, AWS D14.1, deflection can from 1/700 ~ 1/1000, MT or PT is requested for Fillet welding and UT is requested for joint welding.
Hoist:
Chain hoist or Low headroom hoist can be selected. C-shaped design, compact structure, smooth operation, accurate positioning, high Safety reliability, and Maintenance-friendly.
Slewing Mechanism:
Manual or motorized slewing mechanism can be 180 degree, 270 degree, and 360 degree. High quality machined, smooth slewing, low noisy, easy for operation, and speed is controlled by inverter.
Gear Motor:
Worldwide top brand gear motor to make sure the quality, IP55, F insulation class, overheat protection, manual release bar, and equipped with electro-magnetic brake.
Control Panel:
Follow IEC standard, IP55 powder coating high quality enclosure, socket plug-in for easy connection, DIN standard terminal, international brand for the inverter, MCB, Contact and electrical devices on the panel.
Festoon System:
Double line Galvanized C track system with flexible flat cable, one line for hoist power and signal transmission, one line for the pendent control trolley movement. No-welding claw is design for the brackets of the festoon system fixing.
Safety Protection Functions:
NANTE single girder Underhung Jib crane include a lot of protection functions, like Overheat protection for the lifting, load cell type overload limit switch, up&down position limit switch, cross limit switch for the cross travel and long travel. Phase sequence relay, and other optional functions, like crane monitoring system, LED load displayer.
Controls:
NANTE Jib crane can offer both options of remote control and pendent control.
Anti-corrosive Treatment:
Shoot Blasting follow ISO8501-1 SA2.5 class, roughness follow ISO 8503 G class, clearness follow 8502-3 Level II. Use top brand's Rich zinc epoxy painting for the prime, middle layer coating. Use polyurethane topcoat for the finished layer coating. All NANTE painters are trained or inspected by NACE or FROSIO level II Inspector.
Product Parameters

Technical Data of Free Standard Jib Crane

Capacity

250kg

500kg

1000kg

2000kg

3000kg

5000kg

Rotation Radius(m)

2 ~ 8

2 ~ 8

2 ~ 6

2 ~ 6

2 ~ 8

2 ~ 8

Height of Lifting(m)

2 ~ 10

2 ~ 10

2 ~ 10

2 ~ 10

2 ~ 10

2 ~ 10

Rotational Angle(m)

180°, 270°, 360°

180°, 270°, 360°

180°, 270°, 360°

180°, 270°, 360°

180°, 270°, 360°

180°, 270°, 360°

Control Method(m)

Pendent or Remote control

Rotation Method(m)

Manual

Manual or Motorized

Motorized

Lifting Speed(m/min)

Chain Hoist

8/2

8/2

4/1 or 8/2

4/1 or 8/2

3.2/0.75

3.2/0.75

Wire Hoist

/

/

/

5/0.8

5/0.8

5/0.8

Trolley Speed(m/min)

0~20

0~20

0~20

0~20

0~20

0~20

Rotation Speed(m/min)

0.2~1.0

0.2~1.0

0.2~1.0

0.2~1.0

0.2~1.0

0.2~1.0

Company Profile
FAQ
Q1: Are you Manufacturer or Trading Company?
A1:We are an integrated industrial and trade enterprises. We have our own R&D team, factory and marketing department.
Q2: Which standard of your crane and crane components apply to?
A2: Our Crane can design and manufacture base on FEM, CMAA, ISO EN, GB standard.
Q3: How do you ensure your product quality?
A3: All our processes strictly adhere to ISO-9001 procedures, which include Material Traceability, ISO WPQR and welder certificate, Measuring Device Calibration, NDT for the welding, and full assembling and load testing before delivery.
Q4: How can I make payment?
A4: We accept T/T bank transfer, L/C, Paypal.
Q5: How can I assembly the cranes in my factory?
A5: We suggest you to recruit a crane service team in local to install the crane base on our Installation Guideline and User manual. If cannot, we can send engineer to your factory to guide you do the installation with extra charge, and the transportation, accommodation, translator shall be covered by your side also.
Q6: What is the warranty period, and how can I claim warranty If my crane have any issue?
A6: Our warranty period is 12 months after cargo leave China port. If the crane have any issue, our after-sales team and engineer will help you solve the issue by email or Video conference. If the defect is caused by quality issue, we will ship the spare parts to you by air to help you fixed it as soon as possible.
Q7: Do you accept OEM business?
A7: Sure, we do many OEM productions for some famous crane brand and customers around the world.
Q8: What about shipping?
A8: We recommend small batch by the way of air or LCL, but large delivery by the way of container or bulk vessel.
Q9: what about delivery time?
A9: different capacity crane and components have different estimated delivery time, generally speaking, around 4 weeks to 8 weeks.
Q10: What is your company policy if we want to distribute NANTE product in our market?
A10: Firstly, thank you for your interest to promote NANTE brand, we have distributors in 50+ countries, pleaes no hesitate to contact us for the detail discussions, as we have different policies for the different target markets. Surely, you are welcomed to visit our factory and let's talk face to face.

---
