Product Name
Ductile Iron Rubber Seat Gate Valve
Gate
Ductile Iron + EPDM or NBR
Allen Bolts
Carbonization Process
Bonnet
Gray Irorn, Ductile Iron, Cast Steel
Bolt
Carbon Steel, Alloy Steel
Transport Package
Wooden Case
Production Capacity
1000000
Packaging & Delivery
Package Size
40.00cm * 30.00cm * 20.00cm
Package Gross Weight
10.000kg
Product Description

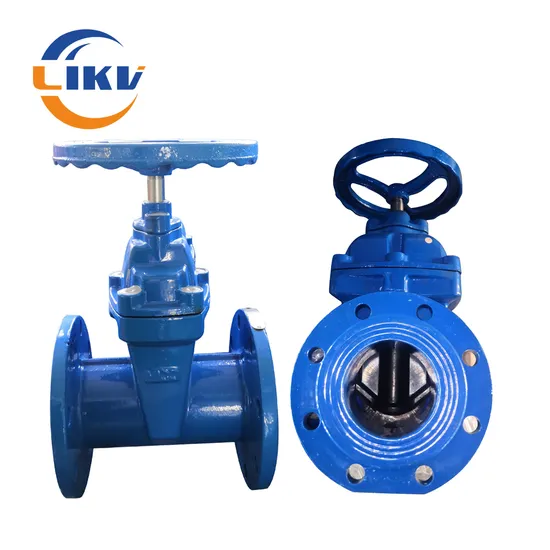

Class150 DN100 DIN 3352 Resilient Seat Non Rising Stem Ductile Iron Gate Valve Basic Customization Nrs for WaterNon-rising resilent gate valve, gate valve as a whole package glue to produce the phenomenon of deformation effect to achieve a good sealing effect, to overcome the general valve seal bad, water leakage and rust, the more effectively to save installation space. Can be widely used as the regulation and closure devices for water, sewage, construction, petroleum, chemical, food, pharmaceutical, textile, electric power, shipbuilding, metallurgy, energy systems and other fluid pipeline.
Meterial of main parts
Part name | Meterial |
Body | Gray iron, ductile iron, cast steel |
Gate | Ductile iron+EPDM or NBR |
Allen bolits | Carbonization process |
Seals | NBR,EPDM |
Bonnect | Gray iron,ductile iron,cast steel |
Stem | Stainless steel |
O-ring seals | NBR |
Thrust bearings | Tin bronze |
Bolt | Carbon steel,ally steel |
Gland | Ductile iron,cast steel |
Dust Cover | NBR |
Hand wheel | Malleable iron |
Features
1.Weight light
2.Flat base type valve seat
3.Whole encapsulate
4.Fine casts the valve body
5.Inserts the type copper nut
6.Anti-corrosive
7.Is not easy to disrupt
8.Three "O" link seal packing collar
9.Is helpful to live drinks
Main dimensions
DN(mm) | D | D1 | D2 | L | H | N-ød | b |
10 | 16 | 25 | 10 | 16 | 25 | 10 | 16 | F4 | 5163 | F5 | 10 | 16 | 25 | 10 | 16 | 25 |
40 | 150 | 150 | 150 | 110 | 110 | 110 | 84 | 84 | 140 | 165 | 240 | 184 | 4-19 | 4-19 | 4-19 | 18 | 18 | 18 |
50 | 165 | 165 | 165 | 125 | 125 | 125 | 99 | 99 | 150 | 178 | 250 | 235 | 4-19 | 4-19 | 4-19 | 19 | 19 | 19 |
65 | 185 | 185 | 185 | 145 | 145 | 145 | 118 | 118 | 170 | 190 | 270 | 265 | 4-19 | 4-19 | 8-19 | 19 | 19 | 19 |
80 | 200 | 200 | 200 | 160 | 160 | 160 | 132 | 132 | 180 | 203 | 280 | 290 | 8-19 | 8-19 | 8-19 | 18-19 | 18-19 | 18-19 |
100 | 220 | 220 | 235 | 180 | 180 | 190 | 156 | 156 | 190 | 229 | 300 | 320 | 8-19 | 8-19 | 8-22 | 18-19 | 18-19 | 18-19 |
125 | 250 | 250 | 270 | 210 | 210 | 220 | 184 | 184 | 200 | 254 | 325 | 380 | 8-19 | 8-19 | 8-26 | 18 | 18 | 24 |
150 | 285 | 285 | 300 | 240 | 240 | 250 | 210 | 210 | 210 | 267 | 350 | 460 | 8-23 | 8-23 | 8-26 | 19 | 19 | 24 |
200 | 340 | 340 | 360 | 295 | 295 | 310 | 266 | 266 | 230 | 292 | 400 | 520 | 8-23 | 12-23 | 12-26 | 20 | 20 | 24 |
250 | 405 | 405 | 425 | 350 | 355 | 370 | 319 | 319 | 250 | 330 | 450 | 630 | 12-23 | 12-28 | 12-30 | 22 | 22 | 27 |
300 | 460 | 460 | 485 | 400 | 410 | 430 | 370 | 370 | 270 | 356 | 500 | 720 | 12-23 | 12-28 | 16-30 | 24 | 22 | 30 |
350 | 520 | 520 | 555 | 460 | 470 | 490 | 429 | 429 | 290 | 381 | 550 | 800 | 16-23 | 16-28 | 16-33 | 25 | 25 | 33 |
400 | 580 | 580 | 620 | 515 | 525 | 550 | 480 | 480 | 310 | 406 | 600 | 850 | 16-28 | 16-31 | 16-36 | 28 | 28 | - |
450 | 640 | 640 | - | 565 | 585 | | 548 | 548 | 330 | 432 | 650 | 1000 | 20-28 | 20-31 | - | 29 | 29 | - |
500 | 715 | 715 | - | 620 | 650 | | 609 | 609 | 350 | 457 | 700 | 1200 | 20-28 | 20-34 | - | 31 | 31 | - |
600 | 840 | 840 | - | 725 | 770 | | 720 | 720 | 390 | 508 | 800 | 1350 | 20-31 | 20-28 | - | 33 | 33 | - |
700 | 895 | 910 | - | 840 | 840 | | 800 | 800 | 430 | 610 | - | 1390 | 24-30 | 24-36 | - | 32 | 32 | - |
800 | 1015 | 1025 | - | 950 | 950 | | 900 | 900 | 470 | 660 | - | 1520 | 24-34 | 24-40 | - | 35 | 35 | - |
900 | 1115 | 1125 | - | 1050 | 1050 | | 1000 | 1000 | 510 | 711 | - | 2090 | 28-34 | 28-40 | - | 36 | 36 | - |
1000 | 1230 | 1255 | - | 1160 | 1170 | | 1112 | 1112 | 550 | 811 | - | 1980 | 28-37 | 28-43 | - | 40 | 40 | - |
Product details
We can produce various types of butterfly valves according to your requirement and drawings.Process and Equipment
Qualification certificate
Company Profile
FAQ
FAQ
1. Can I have a trial sample order?
A: Definitely Yes.We welcome sample order to test and check quality.
2. Can OEM or ODM be provided?
A:Yes, we have a great research & development team. The products can be made according to your request.
3. Can you provide the relevant documentation and certificate?
A:Yes, we can provide you with the documents like catalogue and ACD drawing. And certificate you need ,ISO9001, ISO14001, OHSAS18001, TS, API, CE, RoHS, CCC certificates.
4. Why choose us?
A:1. excellent quality and competitive price: Like Valve have have the most advanced machining equipment, and strictly follow the ISO9000 standard production management
2. Strict testing system: raw material, dimension and pressure test PIECE BY PIECE before shipment.
3. Experienced research and producing team with more than 20 years, can Solve your confusion and problems professionally. We have cooperated with the customers all over the world more than 60 countries and regions
4. 12 months after-sales Services: any problems and feedbacks will be answered intime.
5. What is your terms of delivery and payment?
A: We accept EXW, FCA, FOB, CFR, CIF,etc. You can choose WHATEVER YOU NEED.
T/T, LC, ****** pay, MIC etc.
6.What's the package and how do you ship the goods?
A: Usually with standard plywood case of 1.1*1.1*1.1m shipped by sea. But Airline shipping is also optional.
7. What is the average lead time?
A: For samples, the delivery time is within one week. For bulk order, the lead time is about 15-60 days after receiving the deposit payment. we can provide production schedule and related photos every two weeks if you need.
>>
