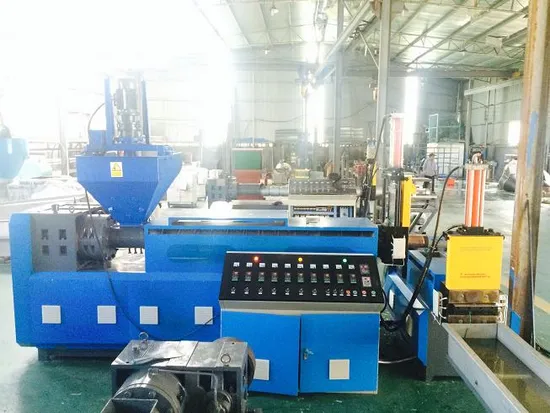

PE/PP/ABS/PC/PS Single Screw Waste Plastic Recyling Machine

Product Description

This machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE, and PP, etc.
It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control.
The granulating crusher uses adjustable speed motor, pelleting with an extruding machine at the same
Discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance,
And favorable economic benefit.

Model	SJ-A90	SJ-A100	SJ-A110	SJ-A120
Type Diameter of Screw Stem	φ90	φ100	φ110	φ120
Major Diameter Ratio of Screw Stem	L/D 20:1 -22:1	L/D 20:1 -22:1	L/D 20:1 -22:1	L/D 20:1 -22:1
Rational Speed of Screw Stem	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Main Motor Power	22kw	30kw	37kw	45kw
Output	68kg/h	95kg/h	120kg/h	135kg/h
Weight of overall(kg)	2600kg	2800kg	3000kg	3200kg
Cover dimensions (l×w×h) (mm)	4000×1500×1800	4000×1500×1800	4000×1500×1800	4000×1500×1800

---
