Eyh Series Two Dimensional Mixer

US$3,000.00 1 Set (MOQ)

Basic Info.

Model NO.
EYH
Application Area
Pharmaceutical
Certification
CE, ISO, GOST, SONCAP, CCC, API
Condition
New
Stirring Type
Spiral
Working
High Speed Mixer
Type
Eyh-10
Barrel Volume
10L
Loading Capacity
5L
Max Loading Weight
2.5kg/Batch
Weight
15kg
Mixer Type
V-Mixer
Layout Type
Horizontal
Mixing Drum Shape
Double Cone
Operating type
Cycle Operating
Transport Package
Standard Export Wooden Cases.
Specification
CE and GMP
Trademark
SPM
Origin
China

Product Description

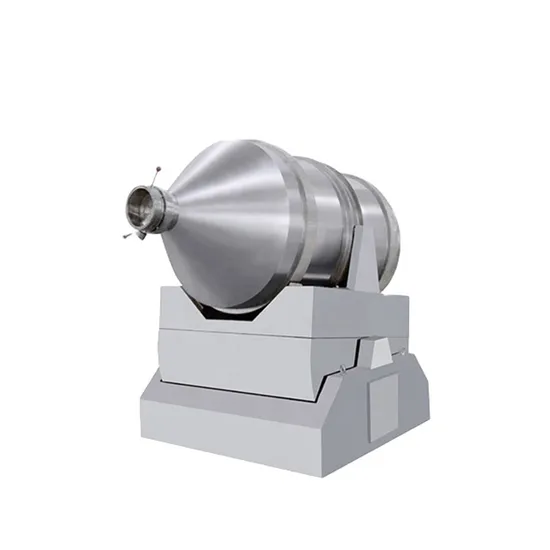

EYH Series Two Dimensional Mixer
Use:
This mixer is widely used in pharmaceutical, chemical, food, dye, chemical fertilizer and pesticide industries and especially suitable for mixing various solid materials with large volume (1000tp-10000litres).
Main Technical Parameters:
Type Barrel volume(L) Loading capacity(L) Max loading weight
(kg/batch)		 Total motor power(kw) Overall size(mm) Weight (kg) Barrel weight(kg) No.of swing &rotation(r/min)
EYH-10 10 5 2.5 0.021 310*400*
450*395		 15 4 85
EYH-30 30 15 7.5 0.19 540*580*
900*700		 60 8.5 61
EYH-60 60 30 15 0.4 700*730*
1100*990		 115 15 50
EYH-150 150 75 37.5 1.15 800*1050*
1450*1340		 190 50 37
EYH-300 300 150 75 1.15 900*1350*
1550*1400		 340 60 30
EYH-600 600 300 150 3 1170*1640*
2050*1910		 1150 140 23.6
EYH-800 800 400 200 3 1320*1950*
2150*2000		 1600 200 19.8
EYH-1000 1000 500 250 3 1360*2040*
2300*2170		 1700 240 19.8
EYH-1500 1500 750 375 4.4 1580*2400*
2550*2330		 2000 320 16.2
EYH-2000 2000 1000 500 7.4 1740*2600*
2770*2550		 2600 430 16.2
EYH-3000 3000 1500 750 11 1800*2900*
2950*2800		 3500 620 13.8
EYH-4000 4000 2000 1000 13 1970*3300*
3300*		 4100 700 12.8
EYH-6000 6000 3000 1500 18.5 2300*2900*
3800*3100		 6100 1100 11.2
EYH-8000 8000 4000 2000 22 2540*4100*
4050*3650		 7900 1450 10.4

Feature:
The mixing barrel swings while rotating so that the materials in the barrel can be fully mixed. Because the discharge outlet of the barrel is out of the barrel centre line, the mixer features quick mixing and discharging, as well as high volume mixing capacity.
