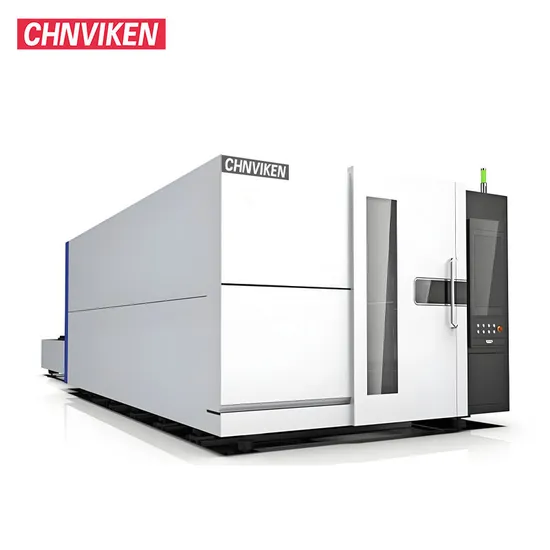

Full Covered Sheet Metal Fiber Laser Cutting Machine Stainless Plate Cutting Machine

Product Description

Product Overview
Ultra-high precision fiber laser cutter, designed for advanced metal processing needs
This is an ultra-high precision, reliable fiber laser cutter, designed for advanced metal processing needs.
It features a streamlined design, robotic welding, and stress relief annealing to ensure high precision and long service life.

Technical Parameters
Machine Model	S3 seris	S4 series	S6 serie
Working Area	3250*1530mm	4100*2050mm	6100*2550mm
Laser Power	1.5KW-12KW
Dimension	4500*2800*1825mm	5500*3275*1855mm	7400*3700*1855mm
Weight	2500KG	4000KG/6200KG	7500KG/8900KG
Maximum Idle Running Speed(m/min)	100m/min-120m/min
Maximum idle acceleration(G)	1.0G/ 1.2G/ 1.5G
X/Y axis positioning accuracy/mm	±0.05mm
Repeat positioning accuracy/mm	±0.03mm
Cutting accuracy/mm	≤0.1mm
Working Voltage	380V,three-phase /50Hz-60Hz
Supported image formats	LXD/.DXF/.PLT/.AI/.Gerber/.DWG

FAQ
1. Usage and maintenance:
Re: Fiber laser cutting machine is totally designed and manufacture by Viken, for usage and maintenance please contact US.
2. What's the shipping cost from China to your country?
Re:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with
postcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.
3. Payment terms, MOQ, warranty, FOB.
Re:Payment terms: 30% TT paid in advance, the balance of 70% before the shipment.
Minimum order quantity: 1 set.
Warranty: 3 years.
FOB: Nanjing / Shanghai/or others port in CHINA.
4. What's the package?
Re:Fumigation-free plywood case or without package.
5. What about commissioning service?
Re:We can offer commissioning service, the buyer need to afford air tickets.
6. What's policy for guarantee and broken parts?
Re:Warranty period of equipment lasts two year, during which the broken parts and spares caused by quality can be offered free.

---
