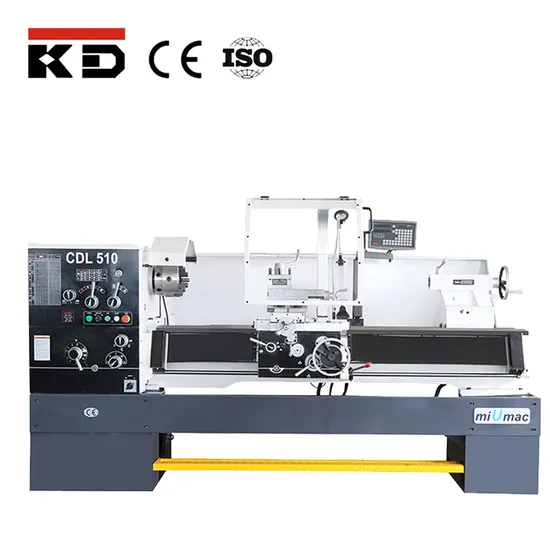

Manual Lathe Machine for Metal with Cdl510 Model No., 40/52mm Spindle Bore, 312mm Bed Width, 40-1800rpm Spindle Speed, and 500mm Max Swing Over Bed

Product Description

Conventional Metal Turning Lathe Machinery Cdl400/Cdl510/Cdl660
Product Features
Product Specifications

MODELS	CDL400		CDL500	CDL660
CAPACITY
Max.swing over bed	Ф400mm		Ф540mm	Ф660mm
Max.swing over carriage	Ф255mm		Ф335mm	Ф460mm
Max. swing over gap	Ф570mm		Ф700mm	Ф820mm
Width of bed	312mm
Max.length of workpiece	1000mm	1500mm			2200mm
Effective gap length	200mm
SPINDLE
Spindle nose	D6
Spindle bore	Ф52mm
Taper bore of spindle	M.T.NO.6
Steps of spindle speed	12	16			16
Range of spindle speed	40~1800rpm	27~2000rpm			27~2000rpm
THREAD RANGE/NUMBER
Metric pitch threads	0.5~20mm/ 24
Inch threads	72~1-5/8 TPI/ 61
Module threads	0.25~10M.P/ 20
D.P.Threads	96~3-1/4 D/ 45
FEED
Range of longitudinal feeds	0.04~2.46 (0.0015″~0.0913″)mm
Range of cross feeds	0.03~1.23 (0.0006″~0.0365″)mm
TAILSTOCK SLEEVE
Taper bore	M.T.NO.4
Max travel	120mm
External diameter	Ф60mm
OTHERS
Size of tool shank	25×25mm	25×25mm			25×25mm
Max travel of cross slide	240mm		350mm			350mm
Max travel of compound rest	100mm
Main motor power	4/5.5kw
