US$15,000.00-20,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Certification
CE, ISO9001: 2000
Standard Bucket Capacity
0.06m3
Max. Power/Rpm
12.2kw/2300rpm
Max. Torque
44.5n.M at 2200 Rpm
Production Capacity
1000PCS/Month
Product Description

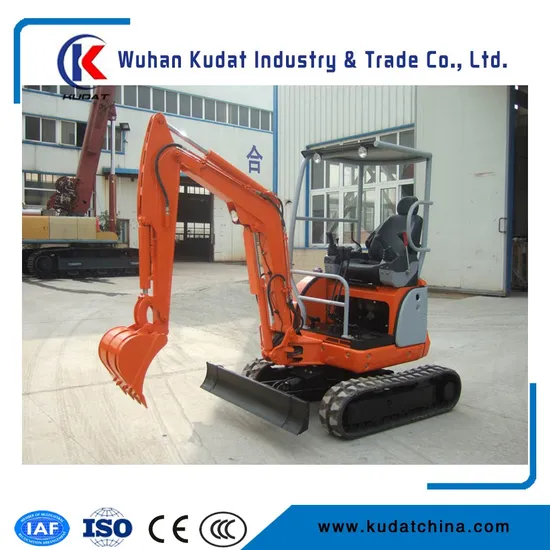

KD16-7mini hydraulic excavator Small size with outstanding performance Original Perkins engine complies with EPA and EC tire 3 emission Imported hydraulic pumps, valves, motors ensure high Performance and smart operation The extendable chassis(from 980 to 1300mm) not only Improves working stability, but also allows entry into tight spaces Easily removable canopy allows entry into low spaceAuxillary hydraulic piping accommodated both one and two-way hydraulic attachments
| Specification | |
| Operating weight | 1800kg |
| Standard bucket capacity | 0.06m3 |
| Track shoe width | 230mm |
| Arm length | 1200mm |
| Boom length | 1650 mm |
| ENGINE |
| Model | Perkins 403D-07 |
| Type | Natural aspirated |
| Number of cylinder | 3 |
| Max. power/rpm | 12.2kw/2300rpm |
| Max. torque | 44.5N.M at 2200 rpm |
| Displacement | 0.76L |
| HYDRAULIC SYSTEM |
| Main pumps | |
| Type | Variable displacement axial piston pump |
| Max.displacement | 2×9cm3/r |
| Working pressure | 21Mpa |
| Hydraulic motor S | |
| Slew | Fixed displacement axial piston motor |
| Travel | Variable displacement axial piston motors |
| Performance | |
| Slew speed | 10 rpm |
| Max. travel speed high/low | 3.9/2.0 km/h |
| Grade ability | 35° |
| Traction force | 13.6kn |
| Max. digging force of bucket | 16.1kn |
| Max. digging force arm | 8.8 kn |
| Ground pressure | 0.227kg/cm2 |
| Tank capacity | |
| Fuel tank capacity | 20L |
| Hydraulic tank capacity | 28L |
| WORKING RANGE |
| A Max. digging reach | 3897 mm |
| B Max. digging reach on ground | 3807mm |
| C Max. digging depth | 2290mm |
| D Max. vertical digging depth | 1539mm |
| E Max. cutting height | 3606mm |
| F Max. dumping height | 2628mm |
| G Mini front slew radius | 1596 mm |
Dimensions
| A Overall width | 1183mm |
| B Shoe length | 1563mm |
| C undercarriage length | 1926mm |
| D ground clearance of platform | 450mm |
| E overall length | 3426mm |
| F boom transport height | 1360mm |
| G overall height | 2250mm |
| H max. raising height from ground | 281mm |
| I max. lowering depth from ground | 358mm |
| J rear slewing radius | 718mm |
| K max, overall width | 980mm |
| M swing angle (R) | 79° |
| N swing angle (L) | 54° |
>>
