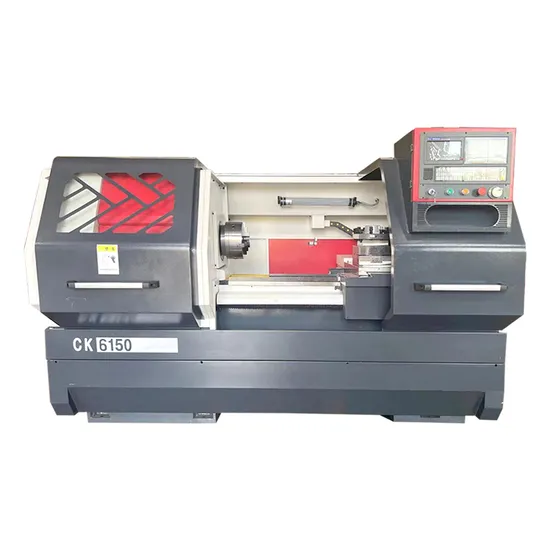

Factory Direct Sale Chinese High Staiblity One-Piece Machine CNC Flat Bed Lathe Ck6150

Product Description

Factory Direct Sale Chinese High Staiblity One-Piece Machine Cnc Flat Bed Lathe Ck6150 1.The numerical control system adopts GSK980TDI, GSK original driver, servo motor, transformer, adopts closed casing
2.Servo motor drive 4N-M/X axis 6N-M/Z axis
3.Thread device
4.Adopt domestic brand precision ball screw pair
5.Four-station electric tool holder
6.Centralized automatic lubrication system
7.The headstock adopts high and low gear speed change, high torque, heavy cutting, the spindle diameter is 52mm,
8.Standard 250 manual three-jaw self-centering chuck
9.Cooling water pump assembly
10.Manual self-locking tailstock
Machine features
#The bed legs are made of integral castings and have good rigidity.
#Bed width 500mm
#Intermediate chip removal
#Spindle three support
#Two-axis linear guide
Standard configurations:
GSK980TC3 CNC controller, 10 inch manual chuck, manual tailstock, 4-position electric toolpost, stepless spindle speed, 7.5kw spindle motor, X/Z axis ball screw, automatic coolant system, automatic lubrication system Tools & tool box
Optional configurations:
Hydraulic 3-jaw chuck Hydraulic tailstock Servo motor GSK980TDC/Siemens 808D/FANUC CNC controller

Technical parameter

Technical parameters	Unit	CK6150
Maximum turning diameter on bed	mm	500
Maximum workpiece length	mm	750
Cutting length	mm	700
Maximum cutting diameter	mm	500
The maximum turning diameter on the slide	mm	280
Spindle end type and code	mm	A2-8
Spindle front hole taper	mm	Metric 90
Spindle hole diameter	mm	Φ82
Spindle speed range	Three-speed frequency conversion	45-180, 180-750, 600-1600
Main motor output power	Kw	7.5
Chuck	mm	250 three-jaw
X-axis rapid traverse speed	m/min	6
Z-axis rapid traverse speed	m/min	6
X-axis stroke	mm	295
Z-axis stroke	mm	750
Tailstock sleeve diameter	mm	75
Tailstock sleeve stroke	mm	150
Tailstock spindle taper hole taper	Morse	5#
Tailstock		form manual
Turning time of tool post per station/form		2S/four stations
Tool holder indexing repeat positioning accuracy	mm	0.003
Tool size Outer circle cutter	mm	25×25
The diameter of the boring bar	mm	optional according to the size of the hole
Center height (from bed floor)	mm	1135
Maximum load-bearing shaft	Kg	400
Disc parts	Kg	100
Total power supply voltage	V	AC380
Voltage fluctuation range		(-10~+10)%
Frequency	HZ	50±1
Total power supply	Kw	18
Total power and contents Main motor	Kw	7.5
Cooling pump motor	Kw	0.125
X axis servo motor	Kw	1.5
Z axis servo motor	Kw	2
NC unit	KVA	0.8
Control panel	KVA	1
Fan, LED light	Kw	0.2
Knife post motor	4 positions	YIL-1-4 1Nm
Machine weight	kg	2500
