Outflow Pressure Screen Grading Screen

Product Description

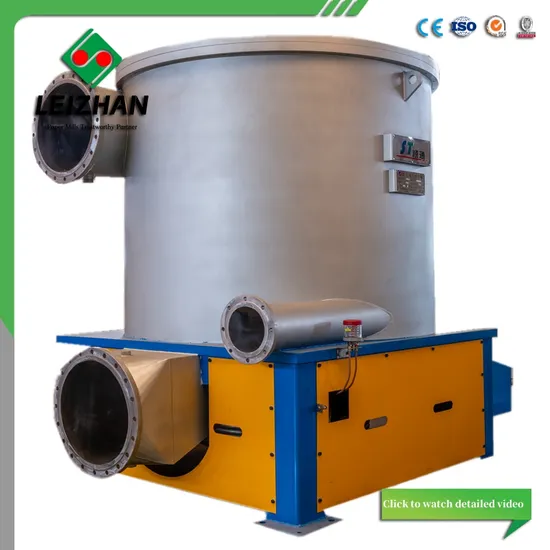

Product Description Pressure Screen is an international advanced paper pulp screening equipment for paper mill. Our company adopts advanced technology and designs to produce new type pulp mid consistency screening equipment. The pulp screening equipment Pressure screen is used for wood/straw pulp hot screening and chemical, paper pulp coarse and fine screening.
This pressure screen has better adaptation, less power &water consumption and high efficiency when compared with common low consistency pressure screen.
Detailed Photos Feature of Pressure Screen 1.Under the pressure of centrifugal movement from rotor, the impurity moves around the outside part of screen basket. Since the impurity moves quite far away from screen basket, the service life of screen basket can be increased due to less wear.
2.The pulp rotating movement offsets some part of positive pulse at the moment that it flows through rotor, thus the positive pulse created by the rotor decreases, which results in mild screening of impurity from pulp. 3.Lower pulse help in sending pulp into headbox of paper machine in a stable condition so that the paper machine can run stably and less broken ends can be created.
4.The design of inflow approach screen helps in more througput, lower energy consumption,higher screening efficiency and less rejects.
Product Parameters

Model	lZNS80	lZNS81	lZNS82	lZNS83	lZNS84	lZNS85	lZNS86	lZNS87	lZNS875	lZNS88
Nominal Area:m2	0.25	0.38	0.76	1.06	1.42	1.88	2.27	2.95	3.54	4.83
Inlet Consistency :%	1-4
Capacity Hole :(T/D)	30-40	50-80	90-160	135-250	180-320	220-420	260-500	300-600	400-700	500-1000
Capacity-Slot:(T/D)	20-30	30-50	60-100	90-150	120-190	150-210	200-300	250-400	300-450	320-730
Inlet Pressure:MPa)	0.15-0.4
Motor Power	15-22	11-37	22-75	30-90	37-110	25-132	55-160	75-200	75-220	132-280
