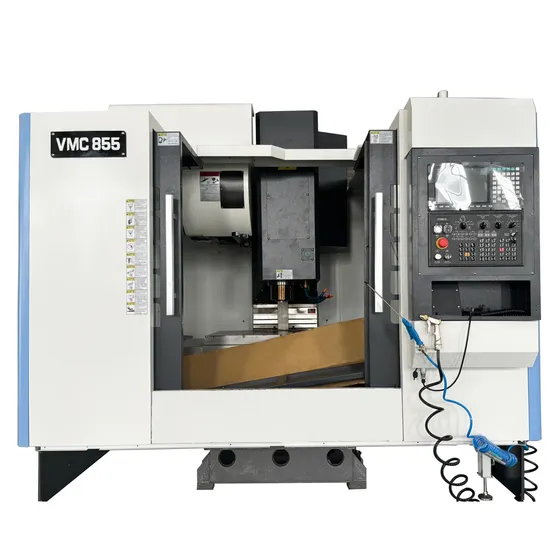

Vmc855 CNC Vertical Machining Center Optional 3/4/5 Axis CNC Drilling and Milling Machine

Product Description

Product Description

Detailed Photos

List of Main Accessories (VMC855)
No.	Name	Quantity	Supplier	Remark
1	System	1set	Syntec	Syntec 22MA
2	Spindle Set	1set	ABIG	8000rpm electric spindle
3	Timing Belt	1set	Japan	UNITTA
4	Screw Bearing	Each 1 set	Japan	NACHI
5	Linear Guide Rail	Each 1 set	Taiwan	HIWIN
6	Breaker	1 set	Delixi	/
7	X,Z axis ball screw	Each 1 set	Taiwan	HIWIN
8	Air Service Unit	1pcs	Taiwan	AIRTAC
9	Power Switch	1pcs	South Korea	LS
10	Contactor	1 set	/	France(Sch-neider)
11	Tool Magazine	1 set	/	24 knifes/ATC
12	Cutting fluid pump	1 set	Zegong	40W
13	Auto Lubrication Pump	1 set	Baoteng	/
14	Oil-water Separator	1 set	/	/
15	Cleaning Air Gun	1 set	/	/
16	Seperate Handwheel	1 set	/	/
17	Cool-heat-exchanger for Electrical Cabinet	1 set	/	/
Working Base
	Size	mm	1000*500
	Bearing capacity	kg	500
	T-slot size(each)	mm	18*5
Processing Range	X axis drive	mm	800
	Z axis drive	mm	550
	Y axis drive	mm	550
	Spindle nose to table	mm	140-690
	Spindle nose to column	mm	600
Spindle	Taper hole		BT40
	Revolving Speed	rpm	50-8000
	Max. output torque	N.m	70
	Spindle Motor	Kw	11/15
	Spindle type		Timing Belt
Tool	Shank		MAS403 BT40
	Rivet		MAS403 BT40-I
Feeding	Three-axis drive motor torque(X/Y/Z)	Nm	18/18/28
	Fast feeding velocity	m/min	X:24 / Z:24/Y:24
	Feed Speed	mm/min	1-20000
Power Capacity	Power Capacity	kVA	25
Position	Positioning Accuracy	mm	0.01
	Repeat Positioning Accuracy	mm	0.008
Machine tool volume	Height of machine	mm	2600
	Floor space	mm x mm	3200x 2400
	Weight	kg	4800

Company Profile
Certifications
Customer Reviews
Exhibitions
Packaging & Shipping
FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms?
A:FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, it can be ready the machine within 15 days. if you need to customized, the time will be little longer.You can place order according to delivery time and ship time. We will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, lathe warranty is one year and system warranty is three year
5. What is the package of the machines?
A:The machines standard will be packed in wood case. If the machine is very heavy, we will reinfore the box with iron frame.

---
