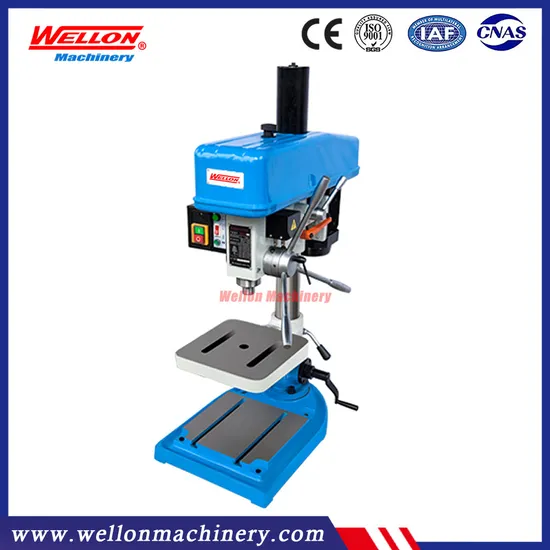

Bench Type Drilling Tapping Machine ZS4112B1 / ZS4116B1 Drill Tap Machine

Product Description

Product Description
Detailed Photos
Product Parameters

Performence Features:
The spindle sleeve with anti-rotation mechanism.strengthen the guide,preventing the head rotation,to avoid the blind
performance of the gear shaft and sleeve.at same time the multi-spindle head improve the precision location.
Spindle head can rise/down by handle,portable and flexible
Belt adjust mechanism adopt the gear driving and rack driving,easier than manual adjust.the clamp adopt screw locking
the slant of motor pin,the clamp reliable and easy to operate.
The bottom of belt cover can be instead of full-locked structure to increase the degree of protection.
The handle shaft adopt steel,everlasting.lengthen the arm,easy to operate and more efficient
Spindle body with the LED light,easy to operate,lighten the working environment.
Technical parameter:

Model		ZS4112B1	ZS4116B1
Max.drilling capacity	mm	12.7	16
Max. Tapping capacity	mm	10	12
Spindle travel	mm	100	100
Distance spindle to column	mm	193	193
Max.distance spindle nose to table	mm	262	262
Max.distance spindle nose to base	mm	500	500
Spindle taper		B16/MT2	B16/MT2
Spindle speeds range	r/min	480~4100	480~4100
Spindle speeds series	steps	5	5
Dimension of base	mm	280x260	280x260
Dimension of worktable surface	mm	200x230	200x230
Main motor	kw	550	750
Net weight	kg	90	90
Packing dimension	mm	80x45x100cm	80x45x100cm

Standard accessories:
Drill chuck
Reduction sleeve and arbor
Draw bar
Wrench
Operate manual
Optional accessories:
Machine vice
Spindle guard
Coolant system
Multi-spindles
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
