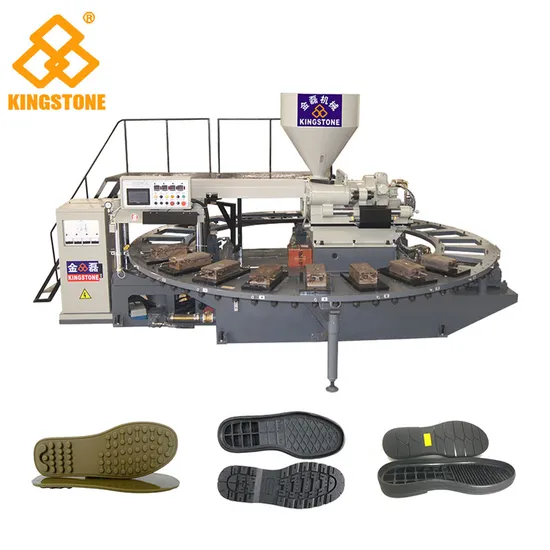

Automatic Rotary One Color PVC TPR Shoe Sole Making Machine

Product Description

>> Descriptions
Material:Suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC and TPR.
Product:Specialized in producing various kinds of one color outsoles for sport shoes, leisure shoes, slippers, sandals, man's and lady's shoes in general, etc.
>> Machine Specifications

Machine model		JL-105
Mould-clamping Unit
Work station		12/16/18/20/24/30
Clamping force	TON	80/120
Opening stroke	MM	210
Mould dimension	MM	600*280
Height of injection nozzle	MM	280
Injection Unit
Injector	SET	1
Screw diameter	MM	55/60/65/70
Screw L/D ratio	L/D	20
Max.injection volume	cm3	500-1000
Injection speed	Cm/s	10
Screw rotation speed	R.P.M	0-200
Electricity Consumption		Normal	Servo
Heating power of injector	KW	7	7
Hydraulic unit motor	KW	18.5	15.7+7.5
Total power	KW	25.5	30.2
Temperature control	Section	4	4
Power consumption per hour	Kw/h	15-20	8-12
Dimension and Weight		24 Stations
Machine dimension	(L*W*H)MM	4600*3600*2300
Machine weight	KGS	6000
*Note:Above data only for reference.

>> Machine Photos
The machine is customized according to the order, it will be different in voltage, spare parts, etc.
>> Finished Products
The machine can produce one color outsoles, widely use for leather shoes, sports shoes, summer sandals, etc.
>> Machine Drawing
Below is the design of machine, designed by our engineers. They will give different drawing for each customer.
>> Package & Shipping
1* 20HQ for this one color sole making machine.

---
