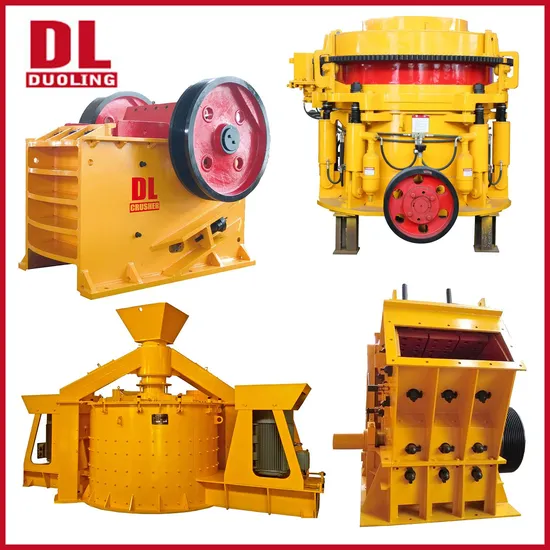

Duoling Mine Plants Stone Aggregates Crushers

Product Description

Duoling Mine Plants Stone Aggregates Crushers
1.1-Introduction of PE Series Jaw Crusher
The PE series jaw crushers manufactured by our company are designed for using in mines, quarries and other industrial applications, on the base of previous experience of sales at home and abroad assuring good reliability and high productivity. The size range of feed material (Maximum compression strength 300Mpa) is from 21 to 1200mm. They are the optimum equipment as primary jaw crushers.
1.2-Specifications of PE Series Jaw Crusher

Model	Feed Opening(mm)		Close Size Setting (mm)	Capacity (tph)	Power (kw)	Weight (ton)
	Width	Length
PE-500x750	500	750	50-120	50-150	55	11.2
PE-600x900	600	900	75-180	65-190	75	17.2
PE-800x1100	800	1100	90-220	140-320	110-132	29.6
PE-900x1200	900	1200	95-240	160-450	132-160	45.8
PE-1200x1500	1200	1500	150-300	430-880	160-250	79.4
PE1400x1800	1400	1800	185-300	500-1100	250-315	120

1.3-Duoling PE Series Jaw Crusher at Workshop

2.1-Specifications of Duoling Hydraulic Cone Crusher

Crusher Models and Capacities (t/h) at Close Side Setting
Model	Close Side Setting (mm)
	6	8	10	13	16	19	22	25	32	38	45	51
PYH-2	55-75	60-90	80-115	110-145	130-170	140-180	150-190	160-210	180-230	200-245
PYH-3	80-95	100-130	110-140	145-185	175-220	190-240	200-260	220-280	240-320	290-380	340-440
PYH-4		115-150	130-175	180-230	220-280	240-320	260-340	280-370	310-430	350-490	400-550	450-620
PYH-5		140-170	170-220	225-290	270-350	310-400	335-430	355-450	395-530	435-600	500-680	560-760
PYH-8			235-330	300-420	370-500	420-540	450-590	480-710	530-780	580-920	560-1000	750-1150

Model	Cavity	Discharge Setting Min (mm)	Feed Opening (mm)	Power (kw)	Weight (t)
PYH-2	X	13	95	160	11.5
	Z	16	120
	C	19	190
PYHD-2	Z	6	54
	C	10	76
PYH-3	X	13	105	220	16
	Z	16	150
	C	19	215
	CC	25	230
PYHD-3	X	6	25
	Z	8	54
	C	10	76
PYH-4	X	13	110	315	25
	Z	20	200
	C	25	250
	CC	30	300
PYHD-4	X	6	40
	Z	8	50
	C	10	90
PYH-5	X	16	135	400	35
	Z	22	210
	C	30	290
	CC	38	330
PYHD-5	X	8	40
	Z	10	56
	C	13	95
PYH-8	X	16	220	630	63
	Z	25	265
	C	30	300
	CC	33	350
PYHD-8	X	5	35
	Z	10	90
	C	13	155

2.2-Workshop of Duoling Hydraulic Cone Crusher
Duoling Crusher at site
Duoling at Bauma China 2018

---
