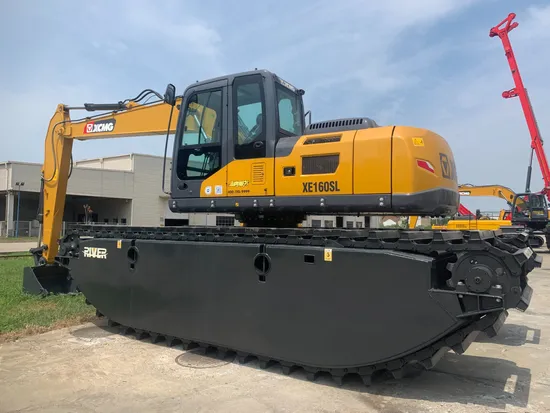

XE160SL Amphibious Excavator with Operating Weight 20500kg

Product Description

XE160SL Amphibious Excavator with Operating Weight 21000kg

Technical Specification of XE160SL Amphibious Excavator
Model	XE160SL
Operating weight	21000kg
Engine	QSF3.8
Power(kw/rpm)	86/2200
Displacement	3.8L
Cyliners	4
Type	Direct injection, four-stroke, water-cooled, turbocharged
Maximum torque/speed	470/1300
Operating weight	21000kg
Long reach front	8621mm
Bucket capacity	0.6m³
Hydraulic System
Main pump	Piston pump*2
Main pump rated flow L/min	2*125.4
Main safety valve pressure MPa	31.4/34.3
Travel system pressure MPa	34.4
Slewing system pressure MPa	25
Pilot system pressure MPa	3.9
Fuel tank(L)	760
Hydraulic oil tank(L)	105
Working Range
Maximum digging height	10990mm
Maximum unloading height	8625mm
Maximum digging depth	5890mm
Maximum digging radius	9840mm
Minimum turning radius	2970mm
Pontoon Undercarriage Dimension
Length (mm)	7000
Width (mm)	1250
Height (mm)	1600
Overall machine width (mm)	3000mm

Usage of Midium-sized River XE160SL Amphibious Excavator
XE160SL amphibious excavators made by RIVER are primarily used for dredging, land reclamation, swamp and wetland construction, waterway clearing, and environmental restoration projects. Main Applications of XE160SL Amphibious Excavators
1. Wetland Restoration: Ideal for restoring marshy areas, removing invasive species, and reshaping terrain.
2. Dredging Operations: Efficiently clears sediment from rivers, lakes, and ponds, reaching inaccessible areas.
3. Aquaculture Construction: Essential for building ponds, creating access channels, and installing aquaculture infrastructure.
4. Flood Control: Crucial in managing water levels, clearing debris, and reinforcing embankments during flood events.
5. Environmental Remediation: Safely removes contaminated soil and debris from water bodies in polluted sites.
The Supplying Range of Amphibious Excavator
We offer a range of models and brands of amphibious excavators spanning from 5 to 50 tons, along with specialized amphibious undercarriage compatible with excavators within the same weight range. Additionally, if you require modifications for a second-hand excavator, feel free to reach out to us for tailored solutions.
The Advantage of Amphibious Excavator Made by River
1. With over two decades of expertise in river dredging, we've spearheaded numerous construction projects, tailoring our products closely to user requirements.
2. We sell surpass 300 units of amphibious excavators per year, earning us the trust of a growing clientele and accolades from Everbright customers, validating our market prowess.
3. As an accredited supplier for renowned excavator manufacturers, our product standards surpass industry benchmarks, setting us apart from competitors.
4. By meticulously overseeing the sourcing of raw materials, we ensure that each piece of equipment undergoes rigorous quality control, guaranteeing optimal performance upon leaving our factory.
The Advantage of Lightweight Design Pontoon Undercarriage

WHY CHOOSE RIVER?
1. The Key Components for Fabricating Amphibious Undercarriage
2. How To Select Suitable Attachment for Amphibious Excavator?
3. Our Cooperated Excavator Brands
4. The Production Process of Fabricating Amphibious Undercarriage
5. Cooperation with Overseas Clients

---
