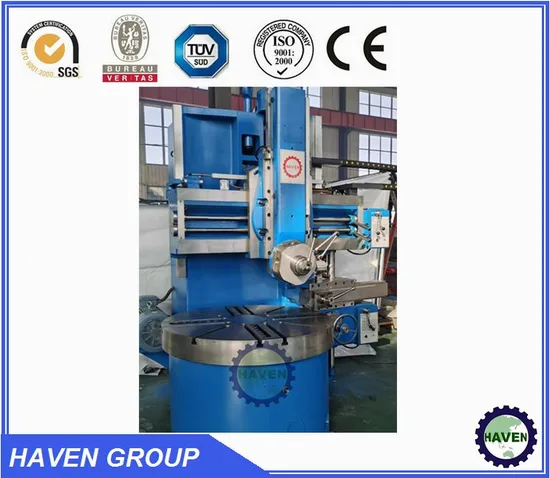

C5123G Single Column Verical Lathe Machine

Product Description

C5123G Single Column Verical Lathe Machine
Main feature:
Our compay is based on the concept of "to build the automatic vertical lathe", which improves machine precision, reduces the difficulty of operation and maintenance, makes a significant improvement of the original CA51 series, maintains the advantages of rigid mechanical structure, and introduces turret structure of the CNC vertical lathe and PLC controlling technology. The main characters after the machine improved:
1. Use the full-function CNC lathe of high precision belt with preloading moving rail, advantages are as follow:
High rotation precision.
Large carrying capacity.
Free maintenance.
Small energy consumption
2. Change the original variable speed into PLC controlling solenoid valve (the same as C5225), which is more reliable speed.
3. All sliding vice are affixed the import rail soft belt, with low friction, no feed reptile, and extend the life time of rails.
4. An abundant series of products.
5. Use Omron program to control and electrical components are used Schneider or Siemens, which are stable and reliable.
Main specification:

Name	Unit	C5112G×H/5	C5116G×H/8	C5120G×H/10	C5123G×H/10
Max.turning dia	mm	1250	1600	2000	2300
Table diameter	mm	1010	1400	1800	2000
Max.height of workpiece	mm	1000/1250/1400	1000/1400/1600	1250/1600/1800	1250/1600/1800
Max.weight of workpiece	t	5	8	10	10
Max.cutting force of rail head	kn	20	25	25	25
Max.cutting force of side head	kn	20	20	20	20
Max.torque of table	kn.m	17.5	25	32	32
Range of table speeds(16steps)	r/min	6.3-200	5-160	2.5-125	2.5-125
Swivel of rail head		±30	±30	±30	±30
Range of feed rates(12steps)	mm/min	0.8-86	0.8-86	0.8-86	0.8-86
Travel of cross beam	mm	650/830/1050	650/1050/1250	900/1250/1450	900/1250/1450
Movment speed of cross beam	mm/min	440	440	440	440
Level travel of rai headl	mm	650	800	1050	1200
Ram travel of rail head	mm	650	800/1000	800/1000	800/1000
Ram of side head	mm	500	630	630	630
Vertical travel of side head	mm	970	980	1180	1180
Rapid speed of tool carries	mm/min	1800	1800	1800	1800
Height of tool bar section	mm	40	40	40	40
Power of main motor	Kw	22	30	37	37
Overall dimension of the machine(LxWxH)	cm	236*247*358	283*287*387	321*405*420	341*405*420
Weight of machine	t	8.3/8.6/8.9	12.6/13.8/14.1	17.5/18.6/19.5	18/19.1/20.6

---
