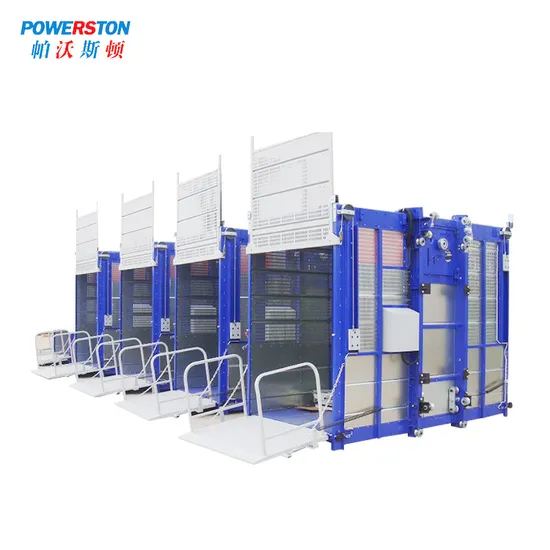

High Speed Frequency Conversion Building Construction Hoist

US$17,000.00-40,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SC200
Type
Stationary
Load Capacity
1T - 2T
Speed
0-96m/Min
Usage
Construction Hoist
Sling Type
Chain
Lift Drive / Actuation
Electric Motor
Lift Mechanism
Lift Chain
Attendant
Without Attendant
Deceleration Device
With Deceleration Device
Elevator Door
Straight Fractional Door
Transport Package
Export Package
Specification
SC100, SC100G
Trademark
POWERSTON
Origin
China
HS Code
84313100

Product Description

Constructiom hoist climbs up along the mast section driven by electric hoist, with 2000kg capacity each cage. By using the frequency conversion device, the mechanical wear is greatly reduced. It is widely used in construction projects, such as industrial and residential building projects, bridge construction, large chimney construction buildings and shipping building industry.

Parameters:
Model Low speed SC100TD SC200TD SC270TD SC320TD
Rated load (per cage) 1000kg 2000kg 2700kg 3200kg
Lifting speed 36m/min 36m/min 36m/min 36m/min
Cage diamension 3.0m(L)*1.3m(W)*2.5m(H) or customized
Motor power 2*11kw 2*2*11kw 3*11kw 2*3*11kw 3*15kw 2*3*15kw 3*18.5kw 2*3*18.5kw
Mast section 650mm(L)*650mm(W)*1508mm(H)
Lifting height 100M
Cage Single/ Double
Model Medium speed SC100GZ SC200GZ SC270GZ SC320GZ
Rated load (per cage) 1000kg 2000kg 2700kg 3200kg
Lifting speed 0-63m/min 0-63m/min 0-63m/min 0-63m/min
Cage diamension 3.0m(L)*1.3m(W)*2.5m(H) or customized
Motor power 2*15kw 3*18.5kw 2*3*15kw 3*22kw 2*3*18.5kw 2*3*22kw
Mast section 650mm(L)*650mm(W)*1508mm(H)
Lifting height 100M
Cage Single Single/ Double Single/ Double Double
Model High speed SC100G SC200G
Rated load (per cage) 1000kg 2000kg
Lifting speed 0-96m/min 0-96m/min
Cage diamension 3.0m(L)*1.3m(W)*2.5m(H) or customized
Motor power 2*2*22kw 2*2*22kw
Mast section 650mm(L)*650mm(W)*1508mm(H)
Lifting height 100M
Cage Double
