Product Description
Product Description

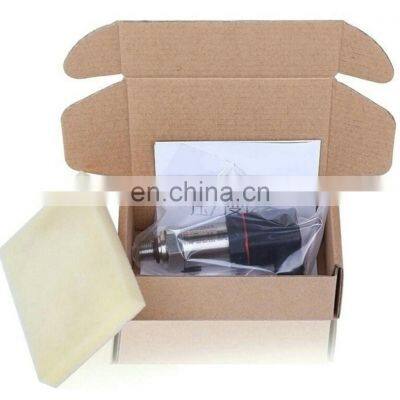

Universal CYYZ11 Series 4-20mA Pressure Sensor / Transmitter Features* Imported diffused silicon pressure sensitive components and advanced diaphragm isolationtechnology* Amplifier circuit using imported BB integrated chip, wide voltage power supply* Compact structure, easy installation* Cut-off interference design, anti-interference ability, anti-lightning* Wiring reverse and over-voltage protection, current limiting protection* High precision, good stability, fast response, impact resistanceApplicationSuitable for indoor, liquid or gas pressure measurement, non-explosion-proof general scene. Parameters* Measuring medium: liquid or gas (no corrosion of stainless steel)* Overall material: diaphragm 316s stainless steel, process connection 304 stainless steel* Pressure range: -100kPa ~ 0 ~ 100MPa (see range selection table)* Pressure: gauge pressure, absolute pressure, negative pressure* Output signal: 4 ~ 20mA, 0 ~ 5VDC, 0 ~ 10VDC, 1 ~ 5VDC, RS485* Power supply voltage: 9-36VDC* Accuracy class: 0.1% FS, 0.25% FS* Medium temperature: -40 ~ 85 ℃* Ambient temperature: -40 ~ 85 ℃* Seismic performance: 25g (20 ... 2000Hz)* Overload capacity: 200% FS* Response frequency: ≤ 500Hz* Stable performance: ± 0.1% FS / year* Temperature drift: ± 0.01% FS / ℃* Protection class: IP65* Maximum power: current-type ≤ 0.02US (W) voltage-type ≤ 0.008Us (W)Digital ≤ 0.015Us (W) Note: Us = supply voltage* Load characteristics: Current-mode load ≤ {(Us-7) ÷ 0.02 (Us = supply voltage)}ΩVoltage type load ≥100kΩ
>>
