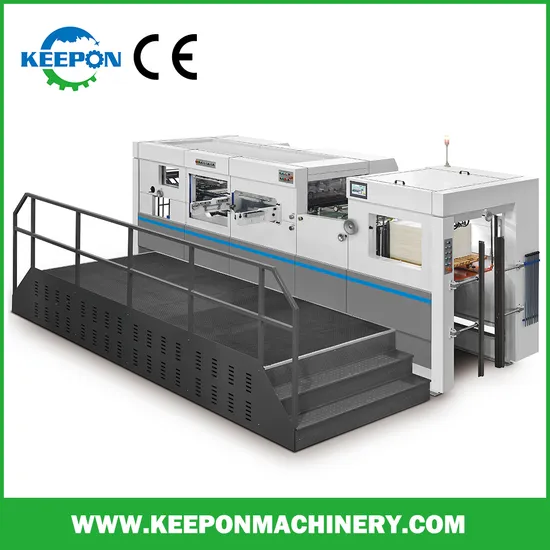

Automatic Flatbed Creasing and Die Cutting Machine (MHC-1060CE)

Product Description

Automatic Flatbed Creasing And Die Cutting Machine
Video: https://youtu.be/rfSF9utR3Sw
Features:
The MHC-1060/1080CE model fully automatic die cutting machine is necessary equipment for printing finishing such as die cutting, creasing and embossing etc. Unique drive gears are adopted high-precision indexing mechanism, pneumatic clutch, overload protection, automatic compression relief etc, to ensure stable and high speed running of the machine. This machine is equipped with practical and reliable mechanism such as pre-stack device, secondary delivery mechanisms, manual sampling etc, which ensure the excellent performance of the machine. Electrical components and driving parts use world well-known brands to ensure die cutting precision and reliability. Also man-machine interface is able to monitor machine running status, trouble shooting and indicating relevant help information which fully actualized man-machine communication.
More Details:
Technical Parameter:

Model	MHC-1060CE	MHC-1080CE
Max sheet size	1060 X 760mm	1080 X 780mm
Min sheet size	400 X 350mm
Max die cutting size	1050 X 750mm	1070 X 770mm
Gripper margin	9-17mm
Inner chase size	1120 X 786mm
Paper range	90-2000gsm paper (0.1-2mm)
	≤5mm corrugated paper
Die cutting accuracy	≤ ±0.1mm
Max die cutting force	300tons
Max die cutting speed	7500 sheets/H
Max feeder pile height	1600mm (wooden pallet included)
Max collection pile height	1400mm ( wooden pallets included)
Main motor power	11kw
Air requirement	0.6-0.7Mpa, ≥0.37m³/min
Full load power	17KW
Machine weight	About 17tons	About 18 tons
Overall dimensions	7800 X 4300 X 2310mm

Our Plant View:
Packing And Shipping:
Clients And Exhibition:
FAQ
1. Q: What is your delivery term?
A: FOB,CIF,CFR usually.

2.Q: What is your payment?
A: T/T.30% deposit, 70% balance before delivery.
L/C. 100% at sight.
T/T and L/C, 30% TT deposit, 70% L/C.

3.Q: What is your delivery time?
A: 30-50 days usually

4.Q: What is your warranty and other terms?
A: One year machine warranty,and whole life technical support. Spare parts are free for customer in 1 year.
We can send our engineer to your factory for machine installation and operator trainning if you need,
Customer pay the flight tickets,meals and hotel for our engineer.
Salary USD100.00 per day to our engineer.

---
