Hydraulic Press 3kg 5kg Animal Mineral Salt Block Making Machine

Product Description

Please Contact Alysa for details

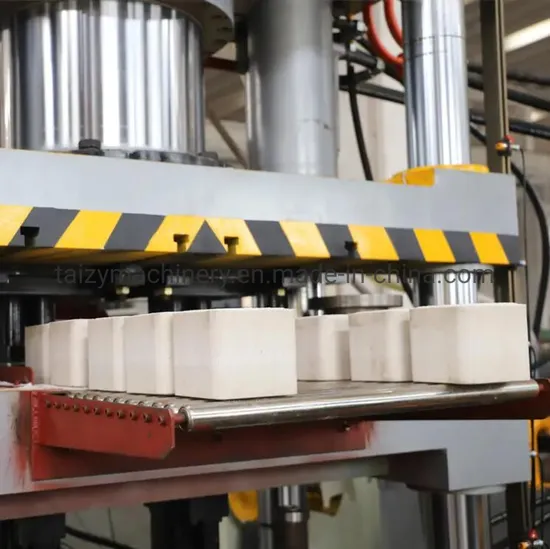

Animal licking making hydraulic press salt block machine
The salt licking briquetting machine is a device that scientifically formulates the mineral elements, vitamins and other trace elements and nutrients required by large livestock such as cattle and sheep, and then processes them into blocks, cakes and other special shapes by the salt licking briquetting machine. . The compressed block is a kind of feed for cattle and sheep to lick. It has different shapes, some are cylindrical, some are rectangular or square. It is also called block compound additive, usually referred to as "licking block" or "licking block". Brick".
The main components of the automatic salt licking block briquetting machine:
1.Host: It is composed of frame, main hydraulic cylinder, pusher hydraulic cylinder, bottom hydraulic cylinder, matching mold frame and mold, pressure head, etc.
2.Hydraulic station: It is composed of motor, hydraulic pump, pump protection device, control valve block and piping system for connecting the briquetting machine.
3.Console: It is composed of electrical system and plc control system.
Features of automatic salt licking block briquetting machine:
1. The highly professional cartridge valve block used in this machine and the super large flow diameter make the system pressure loss less and good sealing performance, so that it will work under long-term heavy load, and the system will not appear to be inadequate; the system design is pre-designed. The load relief device completely eliminates the hydraulic shock.
2. The equipment adopts two-way floating pressure to keep the upper and lower density of the licking brick consistent, effectively ensuring the high density and consistency of the licking brick; the hole of the licking brick uses a core cylinder to ensure that the edge geometry of the hole is very large. Perfect; so that the appearance geometric size of the lick brick is higher than similar products.
3. The hydraulic cylinder is made of thick-walled, high-strength seamless alloy pipes, and the inner wall is honed by a honing machine with two steps of coarse sandpaper and fine sandpaper, so that the inner wall of the cylinder can reach the mirror surface, ensuring that the cylinder is completely reliable during the use of the hydraulic machine, except for the aging of the oil seal. Except for the replacement, the oil cylinder will not cause any problems.
4 The electrical part adopts Delta PLC automatic control system, which has strong anti-interference ability and low failure rate. The miniature relay adopts Japanese Omron electrical appliances to ensure that the control system of the equipment is completely reliable during the working process.
5. This machine uses a professional mold base, uses six guide posts for accurate positioning, and is equipped with mechanical limits, which ensures the perfect appearance and size of the pressed product, and also ensures the consistency of the product weight.
6. The fast device adopted by this machine has low heat generation, high productivity, and durable power saving (up to 3.5 times per minute).

No.	Parameter		Unit	SL100	SL200	SL315	SL400	SL500	SL720
1	Large nominal power		kN	1000	2000	3150	4000	5000	7200
2	Liquid working pressure		Mpa	25	25	25	25	25	25
3	Large distance between the lower plane of the slider and the worktable		mm	1100	1100	1150	1200	1200	1200
4	Slider transport	Suppressing force	kN	1000	2000	3150	4000	5000	7200
		Return force	kN	250	300	500	800	800	9000
	Stroke parameters	Itinerary	mm	400	500	500	500	500	500
		Fast down speed	mm/s	130	120	120	120	120	110
		Slow down	mm/s	20	15	15	15	15	14
		Floating suppression speed	mm/s	12	10	8	8	8	8
		Suppressing speed after pressing	mm/s	10	8	6	6	6	6
		Return speed	mm/s	100	100	80	80	80	70
5	Operating parameters of ejector piston (optional)	Ejection force	kN	350	350	400	400	450	500
		Pull down force	kN	450	450	500	500	500	550
		Itinerary	mm	300	300	300	350	350	350
		Jacking speed	mm/s	100	100	90	90	90	90
		Floating downward speed	mm/s	12	10	8	8	8	8
		Retraction speed	mm/s	80	80	70	70	70	70
6	Down cylinder piston parameters	Reach out	kN	350	500	800	600	600	600
		Retraction force	kN	250	350	600	900	900	900
		Stroke	mm	90	90	100	120	120	120
8	Effective area of worktable (left and right × front and rear)		mm	575×550	685x800	685x800	845x1000	845x1000	1000*1100
9	Total motor power		kw	7.5	15	22	30	30	45
10	Briquette weight		Kg	2	2-5	4-7	2-10	5-10	10-20

---
