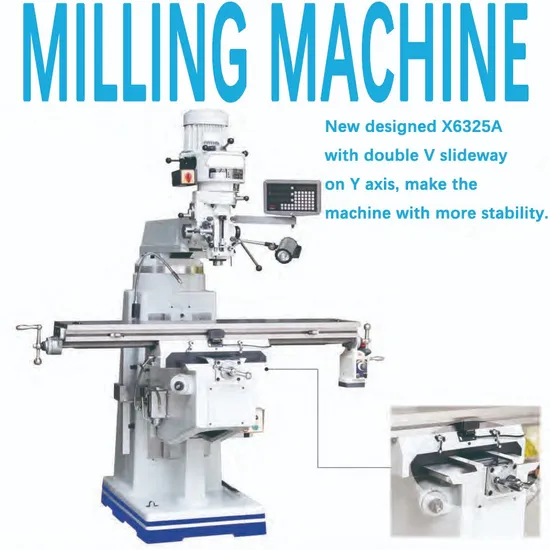

| ITEM/MODEL | | | X6325A with Double -V Slideway |
| Table Size | mm | 254x1270(10x50") 254x1370(10x54") |
| T Slot | mm | 3x16 |
| X Axis Travel | mm | 800 | 900 |
| Y Axis Travel | mm | 440 |
| Z Axis Travel | mm | 400 |
| Ram Cross Travel | mm | 470 |
| Distance From Spindle to Table | mm | 0-400 |
| Spindle Hole Taper | | Standard R8 (Oprional NT30/40) |
| Quill Travel | mm | 127 |
| Spindle Speed | r/min | Standard 16 Shift: 65-4500(50HZ) 80-5440(60HZ) |
| Optional Variable Speed: 60-4200 |
| Auto Quill Feed | mm/rev | 0.04(0.0015") / 0.08(0.003") / 0.15(0.006") |
| Spindle Motor Power | HP | 3(2.2KW) |
| Milling Head Swivel | | ±90° |
| Milling Head Tilting | | ±45° |
| Dimension of Package | 1 Miller/Pallet | mm | 1520x1550x2080 |
| 2 Miller/Pallet | mm | 1650x1800x2170 |
| 3 Miller/Pallet | mm | 1650x2185x2170 |
| Gross Weight | | kg | 1300 |
