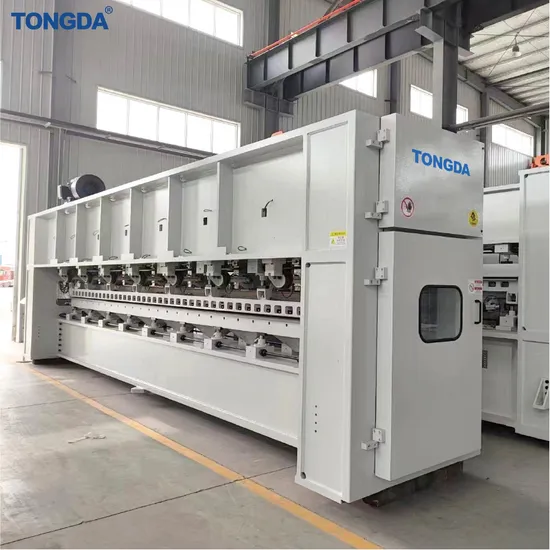

Tongda Tdgz-II Nonwoven Production Line Needling High Speed Needle Punching Machine

Product Description

Product display and advantages
Main Feature :
The needle punching loom TDGZ-II belongs to nonwoven fabric machines. It is used to bond Carded Webs mechanically, Carded and Crosslapped webs, also fiber pads from the Airlay system.Centra oil lubrication circulation and cooling system complete with pressure and temperature alarm systems.Magnesium alloy/PU combined needle board locked firmly by lock-bolt or air tube; multi random computer needling methods for needle board.
Product Details :
Needle beam' movement is controlled by the electronic worm wheel, depth meter display.
Input and output roller's motor and the main motor are transducer controlled.
Stripping board are electronic worm wheel controlled.
Main axle's bearings are imported from Germany, FAG.
Main axle's are of #40 qualitatively treated steel Cr
The main structure is same as DILO .
Automatic pheumatic change needle board.
Lubrication will be done by oil pump attached in the needle loom automatically.
Main technical parameters

Working width	2000-9000mm
Strokes frequency	800-1400 strokes/min
Moving distance of the stroke	50mm (from up to down direction)
Density of the needles	7000needles/meter/set
Needles spec: dia of the root	φ1.83mm
thickness of the main beam	25-50mm
Main motor power	40KW

Main products
Why Choose Us
Regarding the package & delivery
Company Profile
Tongda Group , the vice president company of CTMA. specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has 7 branch companies, mainly produces blow room, cotton carding machine, draw frame, Roving frame, rotor spinning machine, ring spinning machine, water jet loom, nonwoven machinery etc. The company has built a complete infrastructure to support a full effort for product research and development to satisfy the needs of the marketplace. Production capability for cotton machinery and spinning machinery products sustains an annual quantity of 20,000 units of various models.Tongda has been growing steadily since 1952 when the spinning machine were developed. Tongda places its focus on becoming a professional supplier of Textile machinery and new materials with continuous development of modern ergonomic designs, a reliable service support network, and an efficient global network of logistics. Today, Tongda machines are being widely used by thousands of cotton and yarn, textile manufacturers. Along with product development, Tongda has been awarded technology patents. Special techniques in design and manufacturing have also been perfected.Tongda is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. Tongda will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.
Certifications
Exhibitions & Customers
FAQ
(1) Q: Why Choose Our Company?
A: History: TONGDA Textile Machinery Group was establish in 1952. Now have more than 65 years old history. Main Products: TONGDA Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame, roving frame, weaving machine (water Jet loom/Air jet loom/rapier Loom), warping machine, quilting machine and nonwoven machine. We provide design for complete line of spinning mill for cotton yarn, polyester yarn, wool yarn, flax/linen yarn, machines including blow room, carding machine, draw frame, roving frame, ring frame, winding machine, open end spinning machine and the air conditioning system and waste collection system for spinning mill. We also provide workshop layout design and trench design, and air pipe layout design.
(2) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
(3) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
(4) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(5) Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(6) Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
(7) Q: Product /Quality Guarantee and After Sale Service?
A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
(8) Q: One-stop Service:
A: We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
(9) Q: Certification?
A: TONGDA is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. TONGDA will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.

---
