Network Cable S/FTP Category 6 4-Pair Double-Shielded Communication Data Cable

Product Description

Product Description Category 6 shielded cables are used in structured cabling data transmission cables; carrying digital, voice, data and video signals for all Class E links and Category 6 applications, including ISDN, 10 Megabit Ethernet, 100 Megabit Fast Ethernet, 1000 Megabit Ethernet, 4/16Mbit/s Token Ring, TP-PMD/TP-DDI 125Mbit/s, ATM 155Mbit/s, ATM 622Mbit/s.
Application
Meets or exceeds requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E channel standards.
Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5 Category 6 component standards.
Meets requirements of IEEE 802.3af and IEEE 802 3at for PoE applications
Third party tested to comply with ANSI/TIA/EIA-568-C.2
Descending length cable markings enable easy identification of remaining cable which reduces installation time and cable scrap.
Color Availabillity:Additional cable colors available.
Electrical Characteristics
Impedance:1-250MHz 100±15(Ohms)
Rated temperature:75ºC
DC Resistance Unbalance(%):Max2.5
DC resistance 20ºC:8.4(Ohms/100m)
Pair-to-Gruond Capacitance Unbalance:330(pF/100M)
Insulation Resistance:>5000MΩ*Km
Dielectric strength:DC 2500V 2S
Product Features
Meets ANSI/TIA-568.2-D 250MHz test and can be extended to 550MHz.
Physical foam technology for improved electrical performance.
Provide cable length marking to reduce waste.
Supports high-speed transmission of voice, data and video signals.

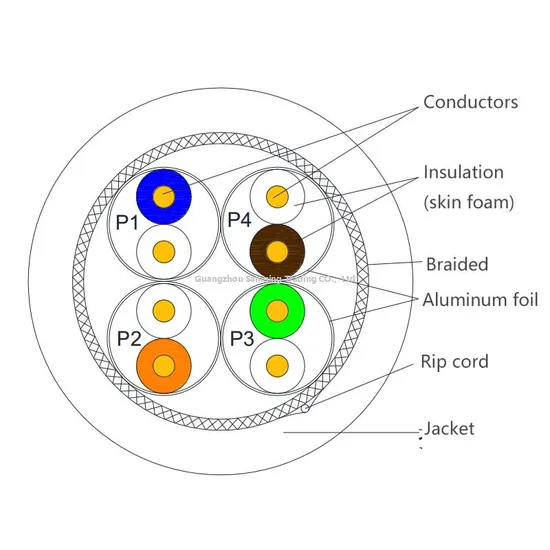

Each pair is individually wrapped with metal foil and shielded with metal mesh on the outside of the 4-pair twisted pair, greatly reducing the loss of near-end crosstalk and far-end crosstalk and providing reliable resistance to external crosstalk.

Conductor
Conductor	Solid Bare Copper 23AWG
Insulation	HDPE
Total number of insulated conductors	8,txisted in 4 pairs
Color code	White-Blue/Blue,White-Orange/Orange,White-Green/Green,White-Brown/Brown
Individual pair shield	None
Overall shield	None
Drain wire	None

Product Parameters
Specification, size, installation requirements

Number of cable pairs									4 pairs
Wire Pair Color									White-blue, blue, white-orange, orange, white-green, green, white-brown, brown
Conductors		Structure							Single strand
		Material							Annealed Round Copper
		Wire gauge							23AWG
Insulation		Core wire outside diameter							1.36±0.10mm
		Material							Physical foam PE
		Color							color strip
Shielding materials									Single-sided aluminum foil / tinned copper wire
Rip cord									150D Polyester straight tow
Sheathing		Material							PVC
		Outer diameter							7.8±0.3mm
		Average thickness							0.6±0.1mm
		Printing							SHIP-TECH SYSTEM CABLE S/FTP CAT6 4PAIRS 23AWG ISO11801 D187-G HSYPVP-6 4*2*0.57P YD/T1019-2013 001M…305M
Roll Forming Method									Wooden plate flat winding
Installation temperature									0ºC~+60ºC
Use and storage temperature									-20ºC~+60ºC
Cable reference net weight									18.8kg/305m

Mechanical properties

elongation at break of a conductor									≥15%
elongation at break of insulation									≥200%
tensile strength of insulation									≥10MPa
tensile strength of sheath before aging									≥13.5MPa
tensile strength of sheath after aging(100ºC±2ºC,168h)									≥12.5MPa
change rate of tensile strength of sheath after aging									±20%
elongation at break before aging of sheath									≥150%
elongation at break after aging of sheath(100ºC±2ºC,168h)									≥125%
change rate of fracture elogation after aging of sheath									±20%
the insulation core is broken or mixed									uninterrupted line without mixed line

Electrical properties

Characteristic impedance

1-100MHZ

100±15Ω

100-250MHZ

100±22Ω

250-500MHZ

100±25Ω

Single conductor DC resistance

≤9.5Ω/100m

DC resistance imbalance within the wire pair

≤2.0%

Dielectric strength DC between conductors

1000V,1min No breakdown

Propagation delay difference

≤45ns/100m

Propagation delay

≤536ns/100m

Operating capacitance

≤5.6nF/100m

Rated transmission rate (NVP)

78%

Insulation resistance

≥5000MΩ·km +20ºC DC (100-500)V

Transmission performance

Frequency	IL(max)	RL(min)	NEXT(min)	PSNEXT(min)	ACR-F(min)	PSACR-F(min)
(MHZ)	(dB/100m)	(dB)	(dB)	(dB)	(dB/100m)	(dB/100m)
1	2.0	20.0	74.3	72.3	67.8	64.8
4	3.8	23.0	65.2	63.2	55.7	52.7
10	6.0	25.0	59.3	57.3	47.8	44.8
16	7.6	25.0	56.2	54.2	41.7	38.7
20	8.5	25.0	54.7	52.7	43.7	40.7
31.25	10.7	23.6	51.8	49.8	37.9	34.9
62.5	15.4	21.5	47.3	45.3	31.8	28.8
100	19.8	20.1	44.3	42.3	27.8	24.9
200	29.0	18.0	39.7	37.7	21.7	18.7
250	32.80	17.3	38.3	36.3	19.8	16.8

Flame retardant performance
Comply with GB/T 18380.22-2008 single insulation fine wire and cable flame vertical spread test - diffusion type flame test method

Distance between the lower edge of the upper support and the start of charring								>50 mm
Distance between the lower edge of charring and the lower edge of the upper support								≤540 mm

Product packaging

Plate surface*Disk inner longitude*Disk inner height (cm)									Φ37*Φ15*L27cm
Cable length									305m/wooden plate
Full container reference weight									21.2kg

Solutions we can offer We focus on the IDC data center field, have professional enterprise-level products, and provide complete planning and design solutions.
Main Application Scenarios:
Only applies to servers.


Packaging & Shipping

Delivery time : 15-20 working days after payment receipt confirmed (based on actual quantity).

Original packaging to ensure product quality and safety.

Professional goods shipping forwarder.

After Sales Service

We guarantee that all products are original and authentic. All support after-sales inspection. Regarding xFusion server, we can provide remote technical services and troubleshooting. In addition to new retail products. Others have used NEW BULK. We provide a complete test report. Please rest assured to buy. The stock is huge. Many products are not released in time. If you need more product quotations. You can email to contact us at any time.

FAQ Q1: How can I believe that your product is of good quality?
A1: We guarantee that all products are original products.We provide a complete test report.
Q2: When can I get a quote?
A2: We will usually quote you within 24 hours after receiving your inquiry. If you really want to get a quotation and more other questions, you can contact us via trademessage or email.
Q3: Why choose you?
Q3: As an Audited Supplier,we have a good reputation on our customers,because of the good quality,suitable price and good service.
Q4: What is your payment?
A4: T/T wire bank transfer.

---
