Video Wall P 3.9 P3.91 Screen Indoor Rental Full Color 3.9mm Pixel P3.9 Outdoor LED Display

Product Description

Application:
1. It's a series of advanced LED screen which can be easily installed and removed.

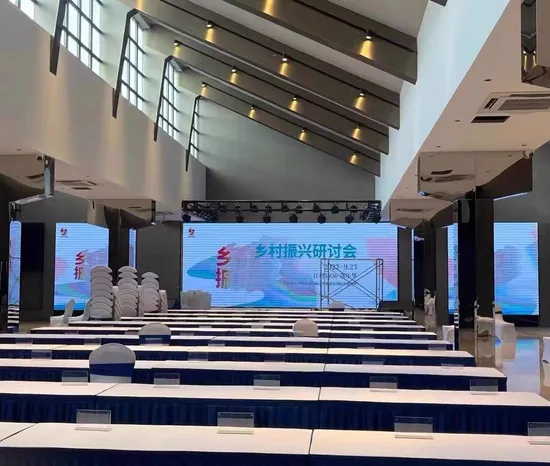

2. Indoor commercial advertising billboard, stage, banks, stock exchange centers, theme park, airport, schools, government agencies, exhibition, meeting rooms, cinemas, hotels, and a variety of public facilities and etc.
Product feature: Slim and light weight design, convenient for installation and save transportation costs. Die-casting aluminum forming process, cabinet tolerance is controlled within 0.1mm, using special connection lock, whole screen flatness and the stitching gap is less than 0.5mm. Low power consumption PCB design, anti-noise cabinet design. Support hanging installation and stand on floor installation, fast stitching without tools. Support front service option and angle adjustment. 500x500mm, and 500x1000mm can use together
Specification:

1	Model No.	ELO MAX-3.91
2	Pixel Pitch (mm)	3.91
3	Module Size (mm)	250x250x15
4	Module Resolution (pixels)	88x88
5	Cabinet Size (mm)	500x1000x88
6	Cabinet Resolution (pixels)	128x256
7	Pixel configuration	1RGB
8	LED Encapsulation	SMD2020
9	Work Voltage (DC)	5V
10	Driver Mode (Scan)	1/16
11	Cabinet Weight (kg)	14.5
12	Physical Density (pixels)	32768
13	Brightness (NIT)	800
14	Gray Scale (BIT)	14
15	Contrast Ratio	3000:1
16	Refresh Rate (Hz)	3840
17	Viewing Angle (H/V)	±140°/±140°
18	Protection Grade	IP30
19	MAX Power Consumption (W/m²)	424
20	Average Power Consumption (W/m²)	168
21	Work Temperature	-20ºC~50ºC
22	Work Humidity	10%RH~90%RH
23	Optimal Viewing Distance	≥8.5 m
24	Input AC Power	100-240 V

The development ability:
1. We can provide all the accessories and software for a whole project. Including hanging bars, sending cards, video processor, software, flight case, power box, power cable, data cable, module mask, etc.
2. We are professional in designing and manufacturing high-end rental LED display screen.
Who we are:
We are a trade factory in Shenzhen with 6 years experience. There are professional develop engineers, experienced sales engineers, and skillful workers.
1. If you want to develop a new design LED screen, please contact us. We can help you.
2. If you have a new project/order but don't know how to process it, please contact us. We can help provide the best solutions/scheme, and guide you.
3. If you are searching for alternative suppliers, please contact us. We are professional.
Factory:
(The pictures below were taken during night, after most of the workers off work)
1. Skillful workers who have worked more than 6 years in our factory.
2. High technology auntomatic machines.
3. Aging test + Grayscale test for each module.
About logistics and transportation:
1. Production time for 0-200 m² LED screen is about 25 days. (Including aging test).
2. Payment term: T/T, 30% in advance and 70% before shipping.
3. Trade term: FOB Shenzhen, CIF, DDU, DDP.
4. Plywood case or flight case provided.
