1. Compact structure, excellent performance, Low ground pressure, high performance in wet or mud land
2. High threshing ability, low broken rate. Low lost rate
3. Thorough clearance with double shakers for re-threshing
4. Famous brand engine with large power and stable performance

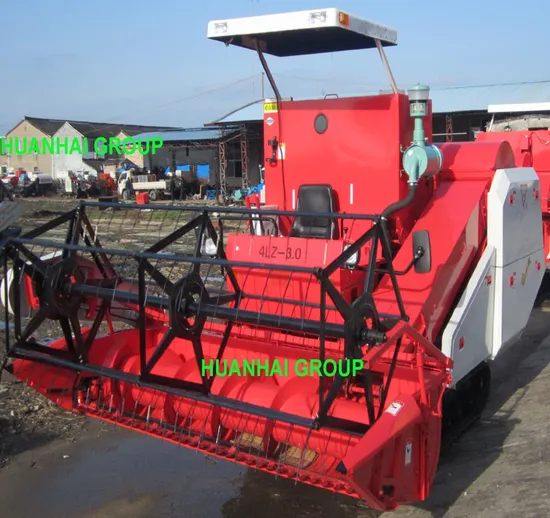

| | | RUBBER TRACK COMBINE HARVESTER | |
| Technical Parameter | | | |
| | | Model | 4LZ-4.0E | 4LZ-6.0P | |
| | | Type | Self-propelled Whole-feeding | Self-propelled Whole-feeding | |
| Dimension | | Length(mm) | 4960 | 5150 | |
| | Width(mm) | 2890 | 2890 | |
| (Operation) | | |
| | Height(mm) | 2830 | 3100 | |
| | | |
| Weight(kg) | 3000 | 3400 | |
| | | Type | Water cool, Four-stroke, Direct Injecti | Water cool, Four-stroke, Direct Injection | |
| Engine | | Power(HP) | 88 | 102 | |
| | RPM(r/min) | 2600 | 2600 | |
| | | |
| | | Fuel tank(L) | 130 | 130 | |
| | Gear Box | ZKB65 | ZKB85 | |
| | | HST | 40cc HST | 45cc HST | |
| Chassis | | Track(mm) | 500*90*51 | 550*90*56 | |
| | Track Center(mm) | 1150 | 1250 | |
| | | Ground Clearance(mm | 320 | 360 | |
| Harvesting | | Cutting Width(mm) | 2000 | 2200 | |
| | Feeding Capacity (kg/s | 5.0 | 6.0 | |
| | | Cutting Bar Lift | Hydraulic Control | Hydraulic Control | |
| Threshing | | Type | Axial Flow Type with Beat Bars | Axial Flow Type with Beat Bars | |
| | Threshing Cylinder (m | 600*2000 | 620*2000 | |
| | | |
| Filtrate Type | Vibrating Sieves+ Centrifugal Fan | Vibrating Sieves+ Centrifugal Fan | |
| Discharging | | Grain unloading type | 360 degree rotary unloading | 360 degree rotary unloading | |
| | Grain tank volume(M3 | 1.5 | 1.6 | |
| | |
| | | Crops | Rice, Wheat, Rapessed | Rice, Wheat, Rapessed, Soybean, Corn |
