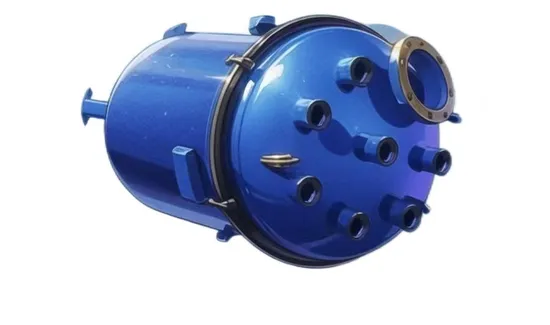

Open Glass Lined Storage Tank 1500L/Horizontal Type Distilling Reaction Mixing Storage Tank

US$1,000.00-10,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
1500L
Type
Tank Reactor
Material
Glass-Lined
Capacity
1500L
Structure
Multiple Parallel
Pressure
Low Pressure (0.1MPa≤p<1.6MPa)
Agitator Model
Ribbon Agitator
Tower Reactor Type
Packed Tower Reactor
Heating
Oil Circulation Heating
Heat Transfer Structure
Jacketed
Automatic Grade
Automatic
Condition
New
Glass Thickness
0.8 mm to 2.0 mm
Certification
ISO9001
Transport Package
Expert Export Transportantion
Specification
1500L
Trademark
Huategn Datang
Origin
China Beijing
HS Code
847982
Production Capacity
2000set/Year

Product Description

Product specification: 50L-8000L
Product standard: GB25025-2010, GB/T 150-2011
Product use: It is an essential and important infrastructure for petroleum, chemical, grain and oil, food, fire protection, transportation, metallurgy, national defense and other industries, and our economic life is always inseparable from large and small storage tanks. Standard open glass lined tank (tank) specifications: 50L, 100L, 200L, 300L, 400L, 500L, 800L, 1000L, 1250L, 1500L, 2000L, 3000L, 4000L, 5000L, 6300L, 8000L, 16000L, etc., can also be non-standard open glass lined storage tank according to user needs.

Nominal
volume
VN/L		 Actua
volume
V/L		 Diameter D/mm Nominal diameter of pipe orifice DN Liquid level gauge Nominal length
*quantity
a/mm
Inlet		 b/mm
Outlet		 c/mm
Spare port		 d/mm
Spare port		 e1-2/mm
Liquid level gauge		 e3-4/mm
Liquid level gauge		 Hand(Man)
hole m/mm
50 58.6 400 65 65 65 65 / / 100 /
100 110 500 65 65 65 65 50 / 100 600×1
200 218 600 65 65 65 65 65 / 125 800×1
300 324 700 80 80 65 65 65 / 125 900×1
400 469 800 80 80 80 65 65 / 125 1000×1
500 590 800 80 80 80 65 65 / 150 1200×1
800 877 1000 80 80 80 80 65 / 150 1200×1
1000 1112 1000 80 80 80 80 65 / 150 1500×1
1250 1357 1200 80 80 80 80 65 / 400×300 1300×1
1500 1640 1200 100 100 80 80 65 / 400×300 1500×1
2000 2179 1300 100 100 80 80 65 / 400×300 1700×1
3000 3153 1450 125 125 100 100 65 / 400×300 2000×1
4000 4336 1600 125 125 100 100 65 65 400×300 1200×2
5000 5542 1600 125 125 100 100 65 65 400×300 1500×2
6300 7100 1750 125 125 100 100 65 65 400×300 1500×2
8000 8800 1750 125 125 100 100 65 65 400×300 1900×2
Nominal volume
VN/L		 Size
H0/mm H1/mm H2/mm H3/mm H4/mm H5/mm D1/mm D2/mm D3/mm n~D4/mm
50 957 500 54 / / / 240 300 / 6-φ20
100 1068 600 67 185 600×1 / 300 380 360 6-φ20
200 1289 820 80 213 800×1 / 360 450 430 6-φ20
300 1371 900 94 180 900×1 / 420 530 530 6-φ20
400 1472 100 107 170 1000×1 / 480 600 630 6-φ20
500 1712 1240 107 210 1200×1 / 480 600 730 6-φ20
800 1720 1200 134 200 1200×1 / 600 750 608 6-φ20
1000 2010 1500 134 190 1500×1 / 600 750 608 6-φ20
1250 2058 1300 410 180 1300×1 / 720 900 808 6-φ20
1500 2319 1550 410 230 1500×1 / 720 900 808 6-φ20
2000 2589 1750 435 180 1700×1 / 780 1000 908 6-φ24
3000 2870 2030 473 200 2000×1 / 870 1100 1058 8-φ24
4000 3168 2290 520 210 1200×2 193 960 1250 1208 8-φ24
5000 3758 2890 520 210 1500×2 193 960 1250 1208 8-φ24
6300 3751 2800 557 200 1500×2 277 1050 1320 1200 8-φ24
8000 4451 3500 557 200 1900×2 368 1050 1320 1200 8-φ24
