Product Details
Product Description
Product Description

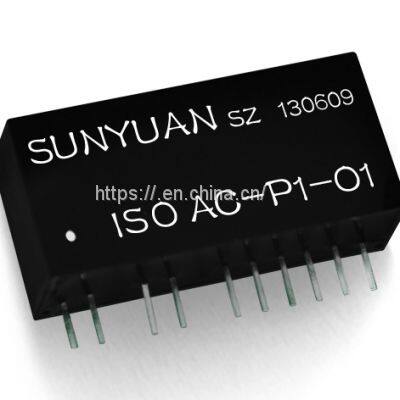

0-5AAC to 4-20mA AC-DC Signal Transmitter IC
Features:
Accuracy/linearity error grade: 0.5
Input: 0-1Vrms AC current (50~60Hz)
Power supply: 5V/12V/15V/24VDC
International standard output signal: 0-10mA /4-20mA/0-5V/0-10V
Low cost, small size, SIP12 UL94V-0 package
Temperature Range: - 45 ~ + 85 ยบ C
Applications:
AC signal acquisition and transformation
High-precision monitoring used for power transmission and distribution
AC small-signal amplification and conversion
Sensor AC signal converter to standard DC Signal
No distortion in long distance signal transmission
Can be connected to an external transformer to compose single-phase or multiphase transmitter
Specification:
ISO series AC-DC signal transmitter IC, is a hybrid integrated circuit that convert the AC
Signal acquisition corresponds to a linear DC signal. This circuit integrates a group of multi-channel
High-isolation DC / DC power supplies and a group of AC / DC signal converter circuit on the same
Chip. Sensors can be collected from the 0-1Vrms (50 ~ 60HZ) AC signal proportional to convert
4-20mA/0-10mA / 0-20mA DC current signal or 0-1V/0-2.5V/0-5V/0- 10V DC voltage signal. An
External transformer can be formed after the single-phase or multiphase transmitter isolation
Between the input and output signal isolation. Remote monitoring and control products in the
Electrical, instrumentation, medical equipment, widely used in the fields of industrial automation.
Model selection:
ISO AC - P- O
Input
AC: 0~1Vrms
Output signal
O1: 4-20mA O2: 0-20mA
O3: 4-12~20mA O4: 0-5V
O5: 0-10V O6: 1-5V
O8: User-defined
Power Supply
P1: 24VDC P2: 12VDC
P3: 5VDC P4: 15VDC
P8: User-defined
>>
