Infrared CNC Machinery Stone Cutting Machine Bridge Saw with Rotating Tilting Worktable

Product Description

Product Description
What it is?
Our bridge stone cutting machines are designed to cut big slabs of marble, granite, quartz, and other material into needed sizes.
We have two models of bridge stone-cutting machines to meet the needs of our customers.

	MAX PROCESSING SIZE (L*W*H)
ZDQJ-400	3200*2000*100 mm
ZDQJ-600	3200*2000*200 mm

How does it work?
It is equipped with a PLC control system with a human-machine interface that can manage the cutting speed, the cutting quantity, and the cutting size.
The structure

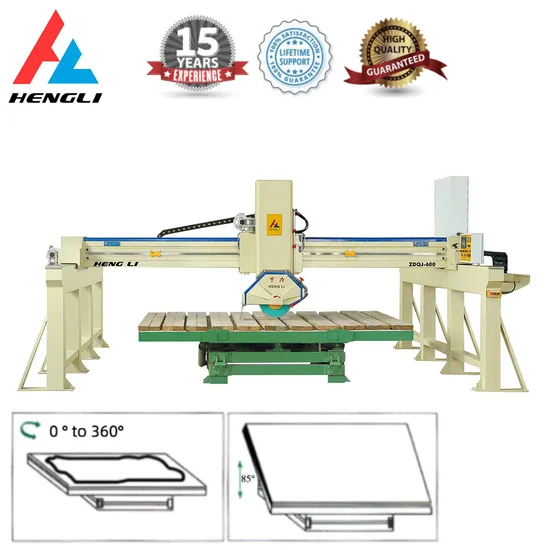

These machines have a bridge structure. They consist of a crossbeam, a rotatable worktable driven by the hydraulic system, two support columns separated from the worktable, and a spindle box with a cutting head.


Product Parameters

Parameters	ZDQJ-400	ZDQJ-600
Max. Blader Diameter	400-600mm	400-600mm
Max. Processing Size	3200*2000*100mm	3200*2000*200mm
Worktable Size (L*W)	3200*2000mm	3200*200mm
Worktable Tilting Degree	0-85	0-85
Worktable Rotating Degree	90	90
Main Motor Power	15Kw	15Kw
Water Consumption	4m3/h	4m3/h
Outline Dimensions	5800*4500*2600mm	5800*4500*2600mm

More Details
It is equipped with sensors to detect the up-down, left-right, and forward-backward movement of the machine in order to minimize the moving range and increase efficiency. It is equipped with an infrared alignment device. The device provides users with visualization of the starting cutting position of slabs, which can help to save materials.
____________________________________________________________________________________________________________________________________________________________________
We can provide two types of support frames (legs) including concrete legs or steel legs based on customers' needs. We also produce Jib Cranes. It is suitable for lifting and moving items in a fixed range with the 360 degrees rotation arm. (For more details, please view the home page).
____________________________________________________________________________________________________________________________________________________________________
Our Service
Pre-service
Before the sale, we welcome customers to visit our factory or to help arrange to visit our existing customers' factories. Professional purchasing advice. We guarantee all of our machines will be checked and tested before handing over to our customers.
After Sales Installation services: In many counties including America, Canada, Malaysia, Singapore, Africa (most African countries), Australia, and New Zealand, we have some regular staff or working partners in those countries to provide service. For other counties, we will send staff from our company to provide installation service. One-year warranty for all of our machines. For those machines out of warranty, we can still provide technical support. We work with many transportation companies with a good reputation and competitiveness in price. Related Products

Company Profile
HENGLI was established in 2007. We are a designer and manufacturer of stone processing machinery in Quanzhou China. Our range of machines mainly includes stone cutting machines, stone polishing machines, stone profiling machines and 5-axis stone working centre (multiple functions). We have our own technical team to constantly improve the function and quality of our machines, and we also have a great sale team to support our customers. We sell our products to many countries such as the USA, Canada, Australia, Turkey, Vietnam, Brazil, Russia, South Africa, Malaysia, Oman, India, and so on. We are very active in attending different international stone exhibitions to get feedback from customers. Customers' feedback is the most important to us. It helps us to constantly improve in service and quality, which it is always our belief since the beginning of this company. We can't wait to sell our products to more countries and to meet more customers.

Exhibitions
FAQ
Q: Are you a manufacturer? A: Yes, we are a professional and top stone machine manufacturer for more than 15 years in China. We have our own factory. Also, we have many authorized agents all over the world to take care of machines after selling service.Q: Can I get a machine according to my own requirements? A: Yes. If customers have special requirements for machines. We are happy to adjust or redesign our machines to meet the needs of customers. Q: This is the first time I use this kind of machine, is it easy to operate?A: All of our machines are easy to operate. Additionally, an English instruction manual will send to you with the machine. If there is still have any questions, we will provide a free professional online guide for you until you could use the machine well. Q: What's your MOQ and delivery? A: Our MOQ is 1 set. We could send the machine to your country port or to the door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.Q: How is your after-sales service? A: We offer machine lifelong's free online guide service. And many countries we have local dealers to do machine installation and maintenance.

---
