Plastic Extrusion 12L Extrusion HDPE Drum Blow Molding Machine/Made in China

Product Description

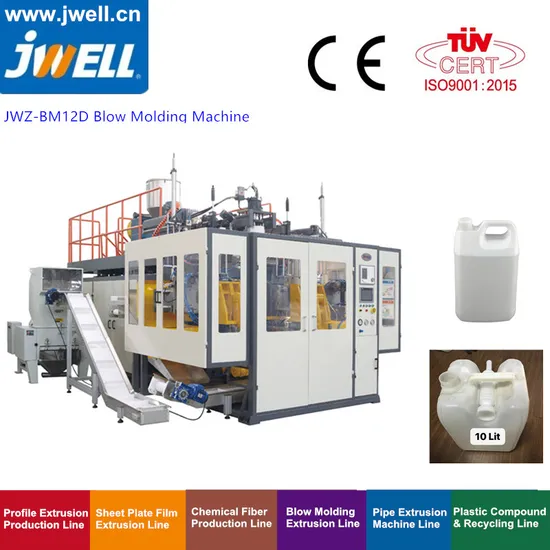

JWZ-BM12D Double Station Blow Molding Machine
Performance and advantages ·Suitable for producing 1-12L different size of gear oil bottle, lubrication oil bottle. ·Optional multi-layer co-extrusion. ·Optional view strip line system. ·According to the product size, select different cavity of die head. ·According to the different material, optional JW-DB single station hydraulic screen-exchanger system. ·According to customer's requirement, optional auto-deflating on line, scrap conveying on line, finished product conveying online.

Technical parameters

Model	Unit	BM12D
Max product volume	L	12
Dry cycle	Pc/h	600*2
Die head structure	Continuous type
Main screw diameter	mm	90
Max plasticizing capacity (PE)	kg/h	160
Driving motor	Kw	45
Oil pump motor power	Kw	15
Clamping force	KN	120
Space between platen	mm	240-640
Platen size W*H	mm	450*500
Max. mold size	mm	360*400
Platen moving stroke	mm	600/650
Heating power of die head	Kw	10
Machine dimension L*W*H	m	4.2*3.2*3.0
Machine weight	T	12
Total power	Kw	90

Note: information listed above are for reference only, the production line can be
designed by customer's requirements.
Control system
Control system
SIEMENS human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on
the screen.
B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.
Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.
Extrution & Die head
The extruder uses screw and barrel, which is a famous brand all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
JWELL supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
Blowpin system
Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system
Take out robot
Scrapping collect together, convey,crusher into one unit
Hydrulic system
Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
Open&Closing system
Common three platen and three tie bar struction
Toggle struction
Lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.
Electric system SIEMENS CPU unit SIEMENS temperature-control unit SIEMENS digital-output unit SIEMENS analog-output unit MITSUBISHI CPU unit JWELL invertor revolving speed-control Schneider electric components

FAQ
1. What are JWELL coming from?
Jwell made the first Chinese screw and barrel in 1978 in brand name Jinhailuo after hundreds time of testing. Nowaday, in this location Zhoushan city, there are more than 300 companies in this reason. After more than 35 years development, JWELL is the TOP 1 extrusion machine supplier in China with 5 factories, 300 design&test engineer, 3000 employee located in Zhoushan, Shanghai, Taicang, Dongguan, Liyang.
2. Why should I choose Jwell?
We follow Germany type of business heading as the worldwide reliable supplier of plastic extrusion line. We have already provided more than 500 lines located in all countries because we are providing the lastest technology, qualified machine, reliable component and best after-service. 300 Engineers are travelling in the world throughout year for installation and test of machine, the after-service are free and availble forever. That's why we grow up from 10 staff company to 3000 staff Pioneer of Chinese extrusion machine supplier.

CONTACT JWELL, CONTACT SUCCESS!


Cell no/ + 86158 0622 8266
JWELL - Blow Molding Machine

All Key parts: screw&barrel,melt pump, screen changer, mold, and downstream equipment are made by Jwell factory!
Screw making

CNC workshop

Factory

Mostly welcome to new and old customers to visit us for investigation, guidance and cooperation. We are happy to offer powerful support!

---
