Wiss Type CNC Lathe 5axis CNC Milling Machine CNC Accessories 5 Axis Lathe

Product Description

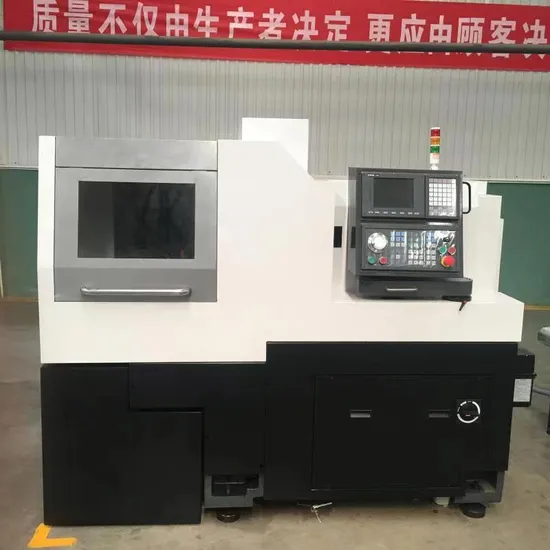

Swiss Lathe/CNC Automatic Lathe 4-axis -AK164
The Swiss type lathe, often recognized as a CNC automatic lathe, stands as a hallmark of precision machining excellence.
Discover the ultimate in multi-functional processing with our state-of-the-art Swiss type lathe. This exceptional machine effortlessly handles a myriad of tasks including tapping, milling, drilling, and turning, all while equipped with dual spindles and a cutting-edge double Y-axis. Its dual-action prowess significantly reduces processing time, making it an ideal choice for batch operations of uniquely shaped and non-standard parts such as precision hardware and shafts.Enter a world of unparalleled precision with our groundbreaking Swiss-style lathe, a true masterpiece in CNC automatic technology. This remarkable machine transforms your workshop, flawlessly executing a wide range of operations such as tapping, milling, drilling, and turning with incredible precision. Equipped with dual spindles and a revolutionary double Y-axis, this lathe embodies efficiency, enabling simultaneous processing that significantly shortens production time. Designed specifically for batch production of intricate, non-standard components, it excels in crafting precision hardware and intricately structured shafts.
Product Description
Delve into the world of precision and innovation with Liaocheng Wayne New Materials Co., Ltd.'s High Speed Swiss CNC Lathe for Efficient Metal Machining Solutions. This remarkable Swiss Type CNC Lathe boasts an impressive 210mm Spindle Stroke Capability. Witness the future of metal machining as the sophisticated sliding headstock expertly maneuvers metal stock with an unrivaled level of precision through the guide bushing. The remainder of the workpiece is meticulously secured within the robust chuck, fortifying its position behind the guide bushing and safeguarding it from the tooling area, all to ensure supreme stability and precision.Every segment of the workpiece is meticulously crafted to perfection, as the bar stock advances seamlessly along the z-axis, enabling the thorough machining of each subsequent section. This segmented approach underlines rapid, precise manufacturing, elegantly addressing any part deflection caused by intense cutting forces. The result? Enhanced accuracy and superior quality in every finished product.Modern Swiss-style lathes represent engineering excellence, typically featuring one or two main spindles enhanced by one or two secondary back spindles. These main spindles serve as the primary powerhouse for numerous machining tasks, delivering exceptional performance. Meanwhile, the ingenious secondary spindle, positioned behind the part, expertly retrieves the part post-cutting. It seamlessly executes an array of secondary operations, such as drilling or tapping previously inaccessible sections of the workpiece, embodying versatility and efficiency in every operation.Upon completion of these sophisticated tasks, the secondary spindle gracefully ejects the finished part into a collection bin, streamlining the entire process and negating the necessity for manual intervention, a frequent demand with traditional CNC turning machines. When it comes to material versatility, Swiss lathes excel in machining a diverse array of metals, including carbon steel, aluminum, stainless steel, and brass. They also adeptly handle certain plastics like nylon and polycarbonate, although they are less commonly used for wood. Immerse yourself in the superior craftsmanship and unmatched efficiency that our Swiss Type CNC Lathe Machine offers.

Product Parameters

Items		AK164
Mechanic	System	FANUC 0i TF-PLUS	SYTENC 22TB
	/Max.RPM	Main10,000min-1/Sub8,000min-1	Main6,000min-1/Sub6,000min-1
	Max.Turning Diameter	φ16mm
	Main Spindle Stroke	150mm
	()	5000rpm
	/	φ10mm
	/	M8/M5
	()	φ10mm
	()	M5
	Rapid traverse speed	32m/min(X1:24m/min)
Tools	O.D Tools	6X [12×12]
	I.N Tools	3X[φ25-ER16]
	()Cross Driven Tools(integration)	3X[ER16]
Motors	Main	2.2/3.7KW	3.9KW
	Sub	0.55/1.1KW	0.75KW
	Cross	0.5KW	0.5KW
	Drive	0.5KW	0.75KW
	Coolant	0.25KW
Others	Coolant tank capacity	180L
	Lubrication tank capacity	1.8L
	Central Height	1,050mm
	Weight	3,000Kg
	(××)The size (L×W×H)	1985×1321×1692mm
NC NC Control	/ Controllable Axes	5axis/4axis
	LCD	LCD 8.4"
	System standard parameters	Standard
	Rigid tapping	Standard
	Helical interpolation	Standard

Items
Standard units	Floodlight	The product output device
	Transformer	Centralized lubrication system
	C+ The spindle axis C + brake	Synchronus rotary guide bush holder unit
	C:0.001° C axis resolution: 0.001 °	Auxiliary shaft workpiece ejection device
	M Air blow on Sub spindle	Cooling box
0ptionanl units	Bar feeder	Front power tools
	Oil cooler	4 4axis cross tools
	Chip conveyor	cut-off tool detector
	High pressure pump	45 4axis or 5axis I.N tools
	Thread whirling rings	10 10axis I.N tools

Detailed Photos
Application
Applications of Swiss MachiningSwiss machining technology, initially a stunning innovation in the watchmaking sector, has dramatically expanded its capabilities. Its extraordinary precision and flexibility now serve a wide array of industries. Prominent sectors that leverage this advanced tool include:1) AerospaceIn the aerospace realm, where intricate and highly specialized components are essential, Swiss machining rises to the occasion with finesse. This sector heavily relies on these expertly engineered lathes to meticulously craft critical parts from premium materials such as aluminum alloys and steel. With precision, Swiss machining enables the creation of pivotal elements like fans and fasteners, vital for aerospace excellence.2) Medical devicesIn the medical field, Swiss-type lathes are essential for crafting exquisitely delicate and intricately designed components. These machines represent the foundation of producing surgical instruments and implants while adhering to the rigorous precision standards demanded by the healthcare industry.3) ElectronicsIn today's era of relentless miniaturization and sophistication in electronics, traditional lathes fall short. Enter CNC Swiss machining, offering unmatched accuracy for crafting connectors, pins, and complex electronic components. It capably meets the avant-garde demands of contemporary technology, setting new standards in electronic manufacturing.4) AutomotiveAmidst the dynamic and intricate mechanical challenges faced by the automotive sector, Swiss machining technology stands out as an indispensable ally. It plays a pivotal role in fabricating complex components that propel modern automotive innovations forward. With Swiss machining, the automotive industry can deftly navigate its evolving landscape.
By integrating Swiss machining into production, automotive manufacturers can seamlessly produce critical components such as suspension systems, carburetor covers, and engine parts. This not only enhances cost efficiency but also streamlines production processes and substantially accelerates manufacturing timelines, providing a competitive edge.
Our Advantages
1. Professional Supplier: Entrust your precision machinery needs to Liaocheng Wayne New Materials Co., Ltd., where our team of seasoned experts passionately dedicates itself to delivering world-class solutions. We meticulously tailor each offering to align seamlessly with your unique specifications and demands, ensuring superior results.
2. Best Quality: Immerse yourself in the realm of unparalleled quality with our High Speed Swiss CNC Lathe. Our stringent standards are a guarantee of consistent reliability and extraordinary performance. This commitment to excellence is woven into every machine we create, setting a new benchmark in precision machining.
3. Best Service: Experience a customer service journey like no other with our exceptional team, dedicated to placing your satisfaction at the forefront. From your initial inquiry to the final delivery, we ensure a seamless and rewarding experience, making your venture into efficient metal machining effortlessly smooth.
4. Best Price: Embrace our competitively structured pricing solutions designed to deliver exceptional value without compromising on quality. Enjoy outstanding service and superior product offerings that reflect our commitment to affordability and excellence, ensuring you get the best deal possible.
Packaging & Shipping
Company Profile
Liaocheng Wayne New Materials Co., Ltd. proudly stands as a vanguard in the realm of cutting-edge CNC Router and Laser Engraving & Cutting technology. Nestled in the vibrant and innovative city of Liaocheng, Shandong, our expansive and diverse product line showcases an astonishing assortment of sophisticated machinery. Our impressive collection includes Large-scale ATC Woodworking Router Machines, advanced 5-axis CNC Router Machines, and the reliable CNC Advertising Router Machines, all engineered to perfection. Furthermore, we offer intricate CNC Marble Engraving Machines, highly efficient CNC Plasma Cutting Machines, state-of-the-art CNC Metal Mold Machines, and versatile CNC Lathe Machines, meticulously designed to fulfill the diverse needs of our esteemed clients. Our high-precision Swiss Type Lathe Machines, robust Fiber Laser Cutting Machines, adaptable CO2 Laser Cutting & Engraving Machines, as well as our state-of-the-art Laser Marking Machines and highly effective Laser Welding Machines, are nothing less than a testament to superior craftsmanship and technological innovation. By embracing cutting-edge technology and upholding uncompromising quality standards, we are steadfast in our mission to establish the international brand 'Wayne.' Our premium products have transcended borders, reaching more than 100 countries, including key markets such as the United States, Germany, Indonesia, Canada, Australia, Russia, and extensively across Southeast Asia. This extraordinary global footprint fortifies our stature as a preeminent international leader in our field, asserting our dominance and fostering innovation.
Our core mission is to deliver unparalleled service excellence to our cherished customers. Whether you require standard solutions or bespoke configurations, we excel in providing precisely tailored solutions that cater to your unique requirements. Each component of our advanced machines is meticulously sourced from globally recognized suppliers and innovators in machine control, ensuring not only outstanding performance but also unparalleled reliability. Our machines seamlessly integrate into a wide array of industries and artistic pursuits, including woodwork, intricate metal and stone work, aluminum fabrication, boat building, shop fitting, and precision mold making. Supported by a dedicated and highly skilled after-sales service department, an expert sales team, and rigorous quality assurance protocols, you can engage with us with complete confidence. We warmly welcome customers and prospective business partners from around the globe to engage in cooperative ventures with us, paving the way for shared success. By offering top-tier service, impeccable quality, and competitive pricing, Wayne positions itself as your ultimate choice. We are eager to collaborate with you to generate greater value together. Contact us with your requirements, and let's engage in a productive conversation. We patiently await your contact, ready to embark on a promising journey together, turning visions into reality.
FAQ
1.What products do we have ?
Machine :laser engraving machine ,laser cutting machine ,laser welding machine ,laser marking machine /cnc lathe machine ,swiss type cnc lathe machine ,cnc machine center
2.Why Choose us ?
1)Faster delievery time
2)Full set of production equipment
3)Any third party test can be accepted
4)Payment terms are more flexible ,both TT and LC can be accepted
5)Perfect Pre-sale and After-sale services can be provided within 24 hours online
3.What is the best advantage do we have ?
Best Quality ,Best service ,Best price

---
