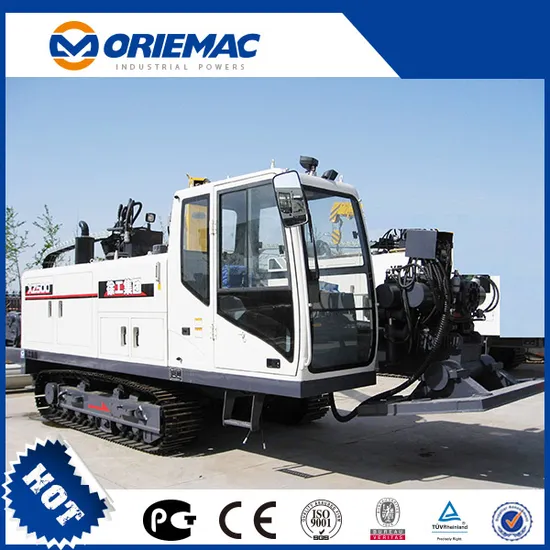

Brand New Hot Sale Xz500 Horizontal Direction Drill Price

Product Description

Brand Hot Sale Xz500 Cable Construction Horizontal Direction Drill Price
Product Description • Hydraulic system: Adopt many advanced control techniques, such as closed energy-efficient circuit, hydraulic pilot control, electrohydraulic proportion control, etc.
• Rotation: It is driven by both the motor and the reducer with two gears to control the speed.
• Feed/retract: Pull or push with the gear rack. There are two gears to control the speed, which has high working efficiency.
• Cab: The single cab with air conditioning makes the operation easy and comfortable.
• Engine: The turbocharging engine has large power reserve, guaranteeing the drilling power demand.
•Drill stand: The high-intensity drill stand is fit for the 4.5m drill rod. The drill stand can slide, which facilitates the angle adjustment.
• Drill rod holder: The movable holder and truck mounted crane make the drill installment and dismantlement efficient and labor-saving.
• Track: The self-propelled steel tracks move and turn conveniently. It is driven by wire, and the speed can be shifted between high speed and low speed.
• Monitoring and protection: The engine, hydraulic pressure, filtration monitoring and alarming can effectively protect the machine safety.
Technical Parameters

Model	XZ500
Engine	CUMMINS
Rated power	194kW
Push-pull	Rack and pinion
Max.pullback/thrusting	500/500kN
Spindle torque(max)	18000N.m
Spindle speed	0~108r/min
Travelling speed of power head	20m/min
Backreaming diameter	Φ1000mm
Pipe length(single)	4.5m
Pipe diameter	Φ89mm
Entry angle	10-20°
Mud flow ratw(max)	600L/min
Mud pressure(max)	100bar
Overall weight	18000kg
Dimension(LxWxH)	9300x2750x2930mm

Product Pictures
