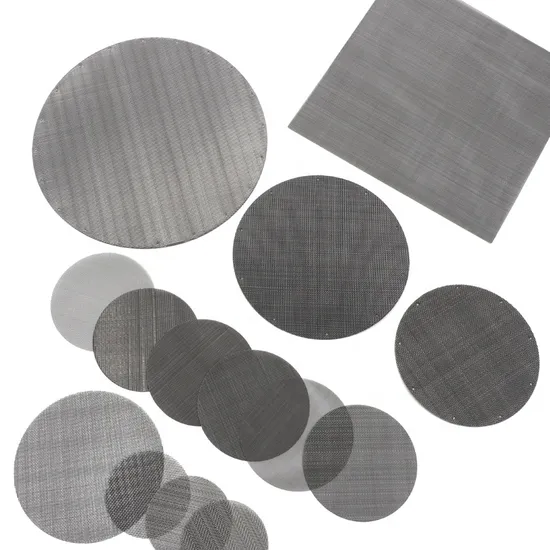

Multilayer Stainless Steel Spot Welding Woven Wire Mesh Filter Disc Pack

Product Description

Product Description
Product Description
XC FILTER experienced manufacturer of woven wire mesh for since year 2007.Our main products are filter elements, wire mesh cloth, filter screen pack, spot welding screen pack, automatic stainless steel screen belt, strengthening screen, conveyor belt, and wire mesh demister.We provide sample customization, drawing customization and other diversified services, committed to creating a diversified filter.
·Plain/Twilled Woven Filter Mesh
The tables below shows the standard grades and specifications available for XC-FILTER's plain weave wire mesh & twill weave wire mesh.

Mesh	Wire Dia. (mm)	Aperture(mm)	Open Area%
4×4	1.219	5.131	65.3
5×5	0.914	4.166	67.2
6×6	0.914	3.319	61.5
8×8	0.711	2.464	60.2
10×10	0.711	1.829	51.8
12×12	0.559	1.558	54.1
14×14	0.457	1.357	55.9
16×16	0.457	1.131	50.7
20×20	0.559	0.711	31.4
20×20	0.457	0.813	41.0
24×24	0.376	0.682	41.1
30×30	0.376	0.531	34.2
30×30	0.310	0.536	40.0
40×40	0.274	0.361	32.3
40×40	0.234	0.401	39.9
50×50	0.193	0.335	43.6
60×60	0.193	0.230	29.8
60×60	0.152	0.271	41.2
80×80	0.122	0.196	37.9
100×100	0.102	0.152	36.0
120×120	0.091	0.120	31.8
150×150	0.071	0.088	29.6
200×200	0.051	0.076	36.0
250×250	0.041	0.061	36.0
300×300	0.041	0.043	26.5
325×325	0.035	0.043	30.0
400×400	0.030	0.033	27.0
500×500	0.025	0.026	26.0
(Special specification we can produce according to customer's requirements)

·Dutch Weave Filter Mesh
The tables below shows the standard grades and specifications available for XC-FILTER's plain dutch weave wire mesh

Warp/Weft Mesh	Wire Dia. (inch)	Absolute filter value (μm)	Nominal filter value (μm)
12×64	.024×.0165	270--285	200--205
14×88	.020×.013	225--245	150--155
20×150	.0098×.007	155--165	100--105
24×110	.014×.010	115--125	80--85
30×150	.009×.007	95--100	65--70
40×200	.007×.0055	65--70	55--60
50×250	.0055×.0045	55--60	40--45
80×400	.0049×.0028	43--48	35--40
(Special specification we can produce according to customer's requirements)

The tables below shows the standard grades and specifications available for XC-FILTER's twill dutch weave wire mesh

Warp/Weft Mesh	Wire Dia. (inch)	Absolute filter value (μm)	Nominal filter value (μm)
20×250	.0098×.0079	110--120	98--105
30×360	.0098×.0060	90--100	80--84
40×560	.0070×.0040	70--75	47--52
120×400	.0040×.0025	50--55	37--43
120×160	.0040×.0025	40--45	28--32
80×700	.0040×.0030	35--40	24--26
200×600	.0024×.0018	28--32	19--21
165×800	.0028×.0020	24--26	14--16
165×1400	.0028×.0016	16--18	9--11
200×1400	.0028×.0016	12--14	5--6
250×1400	.0022×.0016	11--12	3--4
325×2300	.0015×.0010	8--9	2--3
(Special specification we can produce according to customer's requirements)

·Reverse Dutch Weave Wire Mesh
The tables below shows the standard grades and specifications available for XC-FILTER's reverse dutch weave wire mesh

Warp/Weft Mesh	Wire Dia. (mm)	Mesh Thickness (mm)
72×15	0.45×0.55	1.75
120×15	0.35×0.45	1.25
132×17	0.32×0.45	1.20
150×17	0.30×0.45	1.20
152×24	0.27×0.40	1.05
152×30	0.25×0.30	1.00
170×17	0.27×0.45	1.17
260×40	0.15×0.25	0.65
(Special specification we can produce according to customer's requirements)

Product Display

Packaging & Transport
Company Profile
Yangzhou Xuancheng Filter Screen Co., Ltd. is located in the east suburb of the historical cultural city - Yangzhou, which has a fame of "Residential City" awarded by the United Nations.
Our company was established in 2007, which is a professional manufacturer and supplier of extruder filter mesh/screen in China and we have obtained ISO9001:2015 & ISO14001:2004 Certificate, our main products are filter elements, wire mesh cloth, filter screen pack, spot welding screen pack, automatic stainless steel screen belt, strengthening screen, conveyor belt, and wire mesh demister.
Our products are widely used in filtration & separation for various of polymers like PC, PP, PE,LDPE, PS, HIPS, PET and PVC etc. We always seriously believed in 'Quality, Assurance & Reliability' - a motto aimed at maintaining standards of quality control at every single stage of production and unique personalized approach in service. And we also believe in long lasting relationships with our customers. More than 15 years of ongoing development and growth in the industry has earned an enviable reputation for us.
Our factory has equipped with professional stamping tools, dies and cutting equipment, coupled with a comprehensive inventory of wire mesh, allowing us to provide a stable and continuous supply of filters.
Why choose XC-FILTER?
1) Reply your enquiry within 24 working hours
2) Customer order available, OEM and ODM are welcomed;
3) All the goods are inspected by professional QC before delivery;
4) Shipping the goods to our customers all over the world quickly and precisely;
5) Pass the ISO9001 Certificate, high quality could make all clients rest assured;
6) Professional & Integrity, your faithful and long-term partner.
Your enquiry and visit would be welcomed very much!

---
