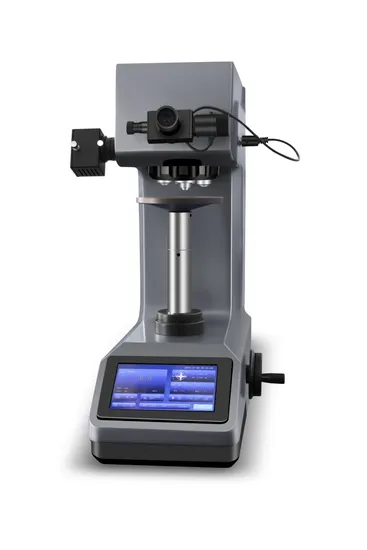

Chengyu-Hvs-1000 Digital Manual Turret Micro Hardness Tester

Product Description

Chengyu-HVS-1000 Digital Manual Turret Micro Hardness Tester Technical Parameter:

Model		HVS-1000
Test force	gf	10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf
	N	0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N
Hardness measurement range		5HV~3000HV
Hardness value resolution		0.1HV
Test mode		HV/HK
Test force application method		Automatic(loading/dwelling/unloading)
Objective and indenter switching		Manual turret
Conversion Ruler		HRA,HRB,HRC,HRD,HRF,HV,HK,HBW,HBS,HR15N,HR30N,HR45N,HR15T,HR30T,HR45T
Objective lens		10× (observation),40×(measurement)
Eyepiece		10× reading micrometer
Total magnification		100×,400×
Test force dwelling time		1~60s
Data Output		LCD display,built-in printer
Light source		Halogen light source
X-Y test bench		size: 100×100mm; distance of travel: 25×25mm; resolution: 0.01mm
Maximum height of specimen		110mm
Distance from indenter center to machine wall		110mm
Power		AC220V,50Hz
Executive standards		ISO 6507,ASTM E384,JIS Z2244,GB/T 4340.2
Overall dimension		405*290*480mm
Weight		Net weight 40kg

FAQ
1. Are you a manufacturer?
Yes, we are professional manufacturer of every kinds of testing machines in China. In general, every machine shipped from our factory provides 12 months of free maintenance, taking into account shipping reasons. We can extend the maintenance period for our customers for 2 months.
2. Do you have after-sales service? How can I ask? What about warranty?
Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.
The service does not include mechanical failure due to the following reasons:
(1) Wrong operation;
(2) Privately modified;
(3) Failure caused by non-equipment itself
(4) Use environment that is not suitable for equipment operation. Such as high temperature, humidity, corrosive gas or vibration.
(5) Problems caused by movement or transportation.
(6) Consumable components.
(7) Natural disasters
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized? Can I customize my own design on the device?
We can not only provide standard machines, but we can also provide customized machines according to your needs.
At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union,L/C

---
