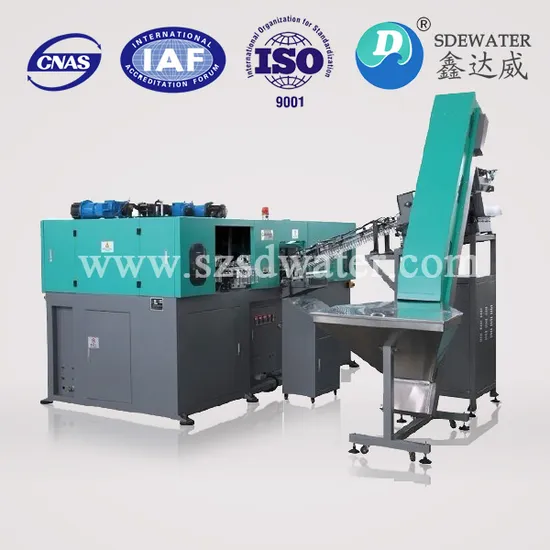

SD-2000-4 Automatic Plastic Water Bottle Making Machinery

Product Description

SD-2000-4 Automatic Plastic Water Bottle Making Machinery
Product Description:

(1) Plastic Machine Function and characteristics

1. The blow molding machine is full automatic and has fast high effcientcy feeding system, adopting the sart wheel in the inverter motor to load embyro, to save the source.
2. Energy saving and high efficiency semi open style heating system can save more than 30%comparing with the same line.

3. Adopting Double Crank Arm Mechanical Sealing Mould, Bottle Die Likage Structure, matching with high pressure compensation sealing mould, to solve the problem of expanded mould and wide mould joint line.

4. Aopting Uk Norgren High Pressure Combination valve, big flowing, fast reaction, to improve unit production and save energy.
5. Standard Fittings Supply System to ensure the equipment run steadily and reduce the maintenance cost.
6. MMI design, Linear Structure, Simple Opration, Convenient and Fast Changing Mould.

7. Auto off Loading Bottle System, can be connected with conveyor(vacuum pipe)automaticly, matching with filling system.
Technical Parameter

Clamping mould system	Model	SD2000-6
	Clamping force(Kg/f)	60000
	Clamping stroke(mm)	120
	Clamping stroke(mm)	240
	Bottom mould stroke(mm)	30
	Cavity pitch(mm)	76.2
Bottle parameter	Cavities Quantity(cavities)	4
	Max.container volume	0.6
	Max.neck diameter(mm)	38
	Max.container diameter(mm)	68
	Max.container height(mm)	260
	Carriage unit (pcs)	76
Electronical system	Theortical output(pcs/h)	4000-5000
	Perature increasement part(group)	4
	Levels quantity of infraed lamps(level)	8
	Total Power(Kw)	41
	Heating power(Kw)	38
Air comprosser system	Operating pressure(kgf/cm²)	8
	Low pressure Air consuming(ltr/mim)	1500
	Blowing pressure(kgf/cm²)	35
	High pressure air consuming(ltr/mim)	6000
Freeze drier system	Operating pressure(kgf/cm²)	2-4
	Temperature(°C)	10-12
	consuming(Kcal/hr)	7600
	Flow rate(ltr/mim)	45
Water Chiller system	Operating pressure(kgf/cm²)	2-4
	Temperature(°C)	25
	consuming(Kcal/hr)	45000
	Flow rate(ltr/mim)	150
Machine dimension	Size(L*W*H)(mm)	2900*2150*2000
	Weight (ton)	4.5

Bottle Blowing Machine Packaging & Shipping

Inner: the machine was pallet with plastic film in case of wearing.

Outer: the outer was packed with strongly woodencase to make sure that the machine will not get damaged during the transport process.
Normally, in order to protect the machine well, we adopt wooden case to package the machine. Regarding shipping, we recommend sea shipping, due to the weight and volume is large.

ShineDew Brand Story
I am a Machinist who from 21st century. This age is developing so fast, now my mom is the first economy in the world. More and more machineries instead of human, people feel free and enjoy holidays.

They say I don't know love, I don't know relax, I don't know enjoy the life. Once I asked myself many times, what is the most important in the world? Until I meet that.....

In a poor mountain village, there are many kind and innocent kids, they don't have good education, without hope, and drinking water is very difficult for them, so I bring water to them.can never forget those days, kids say I bring hope and future to them. I feel very satisfied when I see smiles in their face with full of happiness. Water give us life, water give us future.

Now I know the most important is sunshine, hope, water and life. Suddenly I understand why my mom named me ShineDew. Sunshine warm the world and bring vitality to all things, dew moisten the earth and make all life grow. Mom, I know what is LOVE!


FAQ
1. What kind of information should you provide before making proposal?
(1) What's your bottle size?
(2) What's the usage of the bottle? Is it drinking bottle, beverage bottle, cosmetic bottle or any other usage?
(3) What's your bottle material?
(4) What's your required production capacity? How many bottles per hour do you want to produce?
(5) What's your industrial power supply? Is it 3 phase, 380V, 50Hz?
2. What kind of service do you provide:
(1) Installation service

The engineers could install the machine overseras, and the client should pay for the realated charges.

When the engineers arrive at the client place, they will give the comprehensive trainning till the related operater could operate the machie correctly.

(2)After-sale service

Provide the one year warrant for the machines,(not include the damage caused by human factors and the natural disasters) lifelong time maintanence.

7*24 hours servide by mail,phone.

Engineers could availiabel oversea service.

(3)Trainning service.

When reached the order, the clietn could organise the operator to the supplier's factory.

We will provide the comprehensive trainning for the machines at supplier's factory.

---
