60inch to 240inch Length CNC Metal Press Machine Electric Hydraulic CNC Press Brake

Product Description

Product Description
Electronic hydraulic CNC Press brake bending machine
with hydraulic servo
Electronic hydraulic pressure
With the bottom mold, to achieve different angles of bending, equal pressure operation.
Higher accuracy
The rear transmission using ball screw guide rail.
Customizable press brake machine width and pressure.

Model	JC15	JC25	JC32	JC41	JC51	JC61
Process Length	<1500mm	<2500mm	<3200mm	<4100mm	<5100mm	<6100mm
Pressure (kN)	400kN	800kN	1100kN /1700kN /2500kN	1100kN/ 1700kN /2500kN /3200kN	1600kN/ 3200kN	2500kN/ 3200kN
Pressure (Tons)	40 tons	80 tons	110/ 170/ 250 tons	110 /170 /250 /320 tons	160/ 320 tons	250/ 320 tons
Precision	4+1 Axis Automatic Correction, Electro-hydraulic servo.
Process	Angle bending, arc bending, flattening, support multi-programming.
Control System	Germany MT15 CNC Control system, multi-step programming
Precision	Electro-hydraulic servo calibrate
Frame	Machine frame integral welding
OEM/ ODM	Customized for your needs

German MT15 CNC control system
Supports multi-segment programming
Extendable arm
Unibody construction frame
double hydraulic servo with electricol servo motor
The body of the equipment is more stable and stronger, effectively reducing the impact of vibration and so on, and higher precision. Guide rail type Front folding shelf
Can be shelved different sizes and lengths
of replacement processing metal plates
4+1 axis rear stop device
CNC control system form German MT15

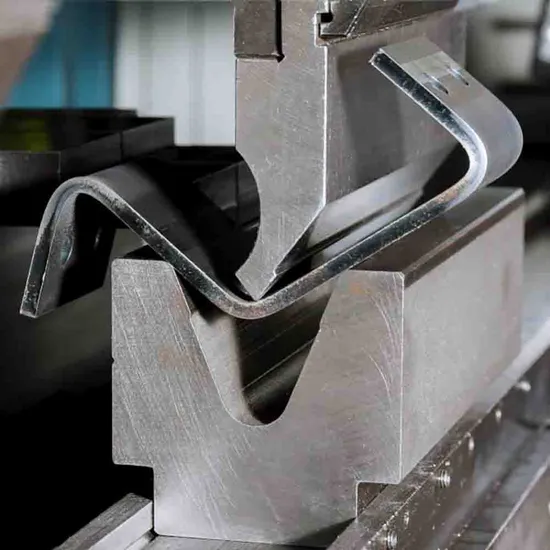

Double V Bottom Mould
Can be matched with different bottom moulds
With the arc grinding tool, the metal plate is press into a circular arc. Processing Samples
Company Profile
Jingchuang(Tianjin) Laser Technology Co., Ltd
We were founded in 2015, covering an area of more than 50,000 square meters, with two factories and four production workshops, mainly manufacturing: fiber laser cutting machines for pipes, laser cutting machines for plates, laser welding machines, laser marking machines, CNC bending machines, grooving machines, and other matching machinery and equipment.
We support OEM/ODM, support custom production machinery according to your industry, budget, needs, etc., to provide you with the most cost-effective laser equipment, and continue to provide you with technical support, training and after-sales service, so that you can use our products more perfectly.Certifications
As a manufacturing plant with a number of technical patents on laser cutting machines and CNC bending machines, our equipment has passed the European 2006/42/EC standard, meets the quality standards EN60204 and ISO12100, and is a demonstration enterprise. Therefore, we deserve your trust and cooperation.
After Sales Service
1. Machine has been tested and adjusted before delivery, you can use the machine directly after receiving it.
2. We provide free user manuals for our laser machines, including text and video.
3. Technicians are always on standby, you can contact us if you have any questions about our machine.
4.We can make door-to-door service, but you have to pay some fees for this.
5.Non-human damage, non-expendable parts, quality problems, we provide solutions.
Exhibition
We have participated in a variety of laser mechanical equipment related exhibitions, so that more friends can understand our equipment on the ground. You can contact us and we will share with you the latest exhibition information, so that you can check our lase machine in the field.
