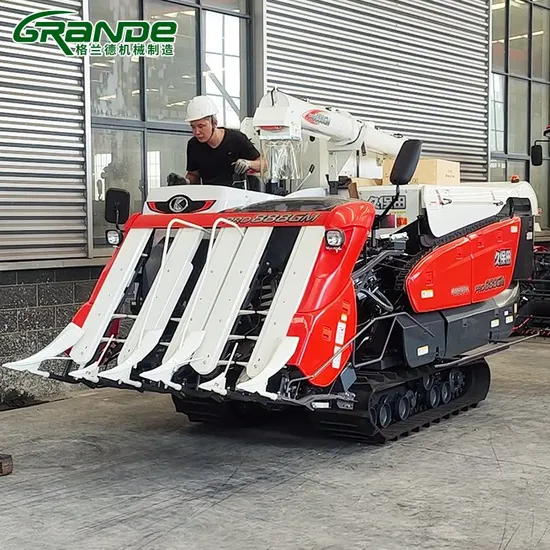

| KUBOTA 4LBZ-172B(PRO888GM) |
| Model | 4LBZ-172B(PRO888GM) |
| Dimensions | Length (mm) (transportation/working) | 4615/4615 |
| Width (mm) (transportation/working) | 2100/2385 |
| Height(mm)(transportation/working) | 2415/2415 |
| Structure weight (kg) / Working weight (kg) | 3350/3477 |
| Engine | Model | V3800-DI-T-ES12 |
| Structure | Vertical water-cooled 4-cylinder turbo diesel engine |
| Total displacement (L) | 3.769 |
| Calibration power (kW) | 66.1 |
| Calibration speed (r/min) | 2400 |
| Fuel | High-quality diesel (0#)) |
| Fuel tank capacity (L) | 73 |
| Walking parts | Rubber track | Ground length(mm) | 1670 |
| Gauge (mm) | 1155 |
| Specifications [pitch (mm) × number of sections (section) × width (mm)] | 90×52×500 |
| Ground pressure (kPa) | 19.7 |
| Transmission type | Mechanical transmission + hydraulic stepless transmission (HST) |
| Gear shift | Stepless forward and stepless backward (auxiliary transmission with 3 gears each) |
| Theoretical operating speed (km/h) | Forward | Low speed: 0~3.82, Standard: 0~5.40, Walking: 0~7.3434 |
| Rear |
| Header | Number of harvested rows (rows) | 5 |
| Cutting Width(mm) | 1720 |
| Threshing depth adjustment method | Automatic / Manual |
| Adapt to crop height range (mm) | 650~1300 |
| Fuhe gears | Auxiliary transmission 3rd gear synchronous + Fuhe 3rd stage |
| Threshing parts | Threshing method | Bottom threshing, single cylinder, axial flow |
| Threshing | Dimensions (outer diameter x length) (mm) | Φ424×1000 |
| Roller | Speed (r/min) | 505 |
| Grain Processing parts | Capacity (L) | 1500 |
| Grain unloading barrel | Grain discharge port rotation range (degrees) and rotation method | 255 [left rotation] Electric motor |
| Grain discharge port lifting range (degree) and lifting method | 0[Horizontal]~47.6·Hydraulic operation |
| Grain unloading height range of unloading grain (mm) | 2000~4900 |
| (Working) |
| Grain unloading mouth extension distance range (mm) | 2700~3900 |
| (Working) |
| Straw Processing parts | Stem chopper type | Hanging type (cutter, cutting length: 60mm) |
| Working hour productivity (hm²/h) | 0.27~0.53(In the case of wheat and rice in standing dry fields) |
Jiangsu Grande Machinery Manufacturing Co.; Ltd. focuses on paddy field stubble tillage rotary tiller and related implements. currently our products have been sold to Africa, South America, Europe, etc. Our company has 30 employees, 1000 square meters of office area and 7000 square meters of warehouse, Adhering to the principle of customer first, in order to supply better technical support and after-sales service, the company had established a technical department and after-sales service department in 2018.
Jiangsu Grande Machinery Manufacturing Co.; Ltd. to provide customers with professional paddy field operation machinery products.
1. What's the MOQ?
MOQ is 1 20GP, around 10 sets.
2. What's the after sales?
Our products' warranty is for 12 months. after that, we can still supply thel spare parts.
3. What's your lead time?
usually within 20 work days.
4. Are you interested in dealership with local company?
Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more machines in local market and supply better service.
5. What's your Payment terms?
30% payment in advance by TT, 70% balance before delivery.
