360 Ton Plastic Syringe Injection Machine for Disposable Syringe with Low Price

Product Description

High Speed Plastic Juice Keg Ice Bucket Product Equipment Injection Molding Machine
Product Parameters

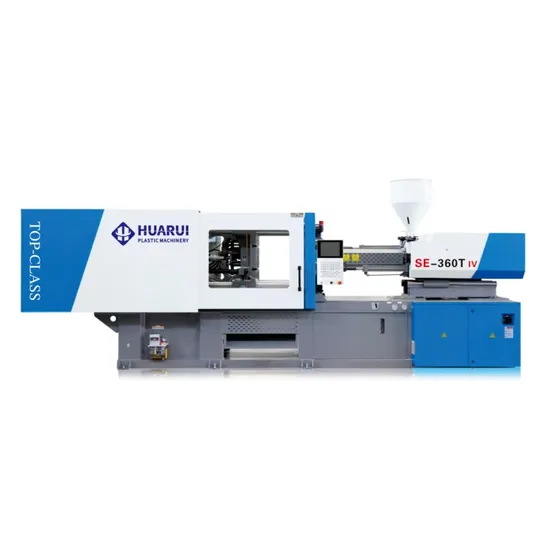

SE-360T IV Plastic Injection Molding Machine Information
Item		Unit		A		B		C
Screw diameter		mm		65		70		75
Theoretical shot volume		cm³		1161		1347		1546
Shot weight (PS)		g		1057		1226		1407
Shot weight (PS)		oz		37.3		43.2		49.6
Length/Diameter ratio		L/D		21.5		20		18.7
Injection pressure		Bar		2071		1786		1556
Injection rate		cm³/sec		352		408		468
Max.screw speed		rpm		190
Clamping force		KN		3600
Max.daylight		mm		1020*970
Open stroke		mm		680
Space Between Tie-bars		mm		720*670
Min mould dimension		mm		270
Mould thickness range		mm		720
Ejector force		KN		90
Ejector stroke		mm		170
No.of ejector pins		unit		13
Max.motor power		KW		55
System pressure		MPa		175
Heater input power		KW		27
Oil filling capacity		L		400
Machine size		M		7.6*2.0*2.4
Net weight		KG		13000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
