US$20,000.00-80,000.00
|
1 Box
(MOQ)
|
Basic Info.
Movement Method
Point to Point Control
Control Method
Open-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Machine Product
Vmc CNC Machining Center
Machine Name
Vertical CNC Machining Center
Transport Package
Wooden Case with Iron Foot
Specification
2370*1400*1700mm
Production Capacity
400set/Year
Packaging & Delivery
Package Size
3500.00cm * 2330.00cm * 2450.00cm
Package Gross Weight
4800.000kg
Product Description

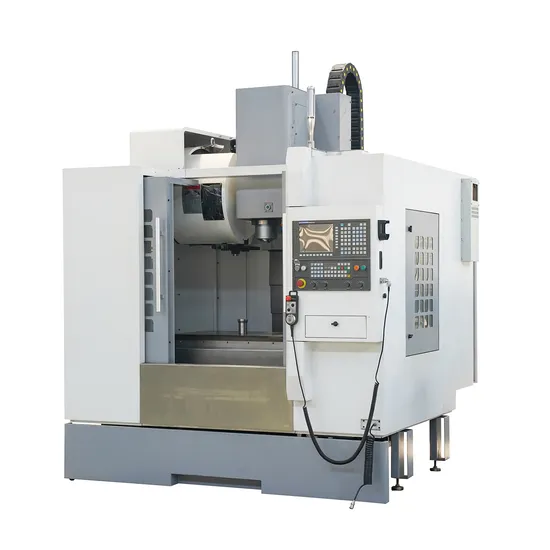

China Manufacturer VMC Vertical CNC Machining Center CNC Milling Center With 3 Axis 4 Axis 5 Axis
| | Item | Unit | VMC850 | VMC1060 | VMC1270 |
Travel | X axis | mm | 800 | 1000 | 1200 |
| Y axis | mm | 500 | 600 | 700 |
| Z axis | mm | 500 | 550 | 700 |
| Spindle nose to table | mm | 100-600 | 100-650 | 100-800 |
| Feed | X Y Z rapid feed | m/min | 24 | 24 | 24 |
| Cutting feed | mm/min | 1-8000 | 1-10000 | 1-12000 |
Table | Table size | mm | 1000x500 | 1200x600 | 1300x650 |
| Max.load | kg | 600 | 600 | 700 |
| T slot | mm | 5-18 | 5-18 | 5-18 |
| Spindle | Speed | rpm | 8000 | 8000 | 8000 |
| Spindle bore | mm | 150 | 150 | 150 |
| Spindle taper | | BT40 | BT40 | BT40 |
| Main motor | kw | 7.5 | 11 | 11 |
| Accuracy | Positioning Accuracy | mm | 0.01/300 | 0.01/300 | 0.01/300 |
| Machine | Size( L W H) | mm | 2700x2300x2500 | 2800x2400x2500 | 3000x2600x2700 |
| Weight | kg | 4800 | 6000 | 7000 |
Standard configuration
KND GSK CNC Controller
16T Funnel tool magazine.
BT40 / 150 precision spindle unit
Three axis linear guide Taiwan HIWIN ,ball screw
Intermittent lubrication system,coolant, water pump
Full protection of sheet metal system
380v 50hz 3phases
Optional configuration
FANUC SIEMENS Mitsubishi CNC Controller
Direct drive spindle,1000rpm
16 or 24 Arm type tool changer
Chip conveyor
Tool Setting, Workpiece Setting
Spindle center outlet water
220v 3ph, 440v , 418v ect.
>>
