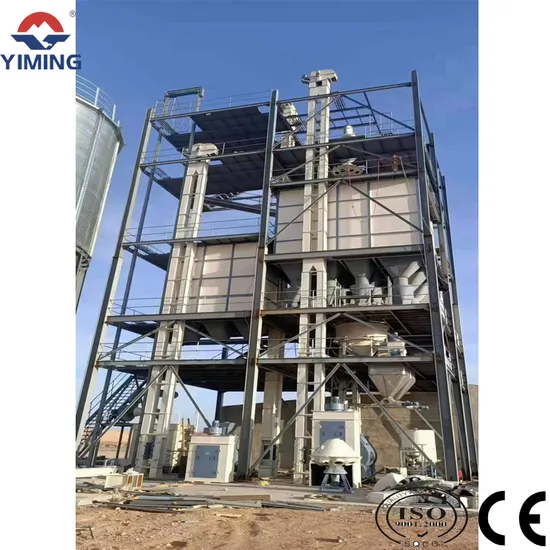

Fully Automatic Complete Pellet Feed Production Line with 500t Steel Silos

Product Description

Fully automatic Complete Pellet Feed Production Line with 500t Silos Product Description
complete pellet feed production line with 500T silos can be used to make various poultry feed and aquatic feed for rabbits, ducks, cattle, chickens, sheep, pigs, pigeons, fishes and shrimp etc. The whole production line can be control by the automatic PLC control system Product Parameters

Model	9KLH250	9KLH304	9KLH350	9KLH400	9KLH420	9KLH508	9KLH520
Main Motor Power (kw)	22	30/37	55	90	110	132-160	160-200
Conditioner Power (kw)	2.2	3.0	3.0	5.5	5.5	7.5	7.5
Feeder Power (kw)	0.75	1.5	1.5	1.5	1.5	2.2	2.2
Capacity (t/h)	1-2	2-4	3-6	5-7	6-12	10-20	15-25

Raw Materials for Feed Pelletizing:
The feed pellets are usually made of corn, brown rice, paddy, sorghum and soybean meal etc.
Feed Pellets Processing Technology:
Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet Crushing → Screening & Grading → Pellet Packing
a. For pig, the pellet diameter is usually ø3.5-6.5mm.
b. For cattle, the pellet diameter is usually ø4.5-8mm.
c. For chicken, pellet diameter is usually ø3.2mm.
d. For fish, pellet diameter is usuallyø2.0, ø2.5, ø3.0mm.
e. For shrimps, pellet diameter is usually ø1.0-ø3.5mm.
Pellet length is customized. Workshop processing ability
Packaging & Shipping
Customer Visit

---
