US$180.00-320.00
|
1 Piece
(MOQ)
|
Basic Info.
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Continuous Running Operation
Arbor Configuration
Vertical Shaft
Belonging
Agriculture Machine
Transport Package
Wooden Package
Production Capacity
500sets/Year
Product Description
Product Description

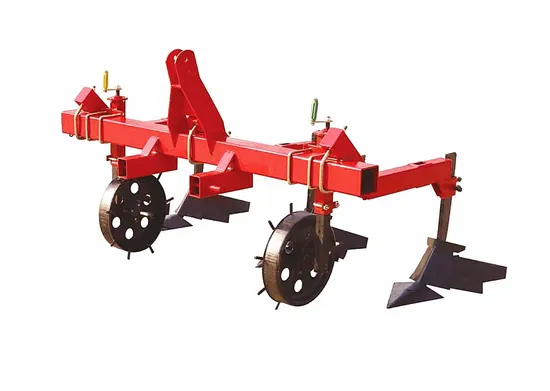

Our main products include DISC HARROW,DISC PLOUGH,CULTIVATOR,SHARE PLOW.FARMTRAILER,GRASS MOWER,SEEDER,HARVESTER,DISS BLADE,BREAK SHOVEL AND OTHER AGROPARTS,ESPECIALLY IN HEAT TREATMENT OF THE BLADE.WE HAVE ACCUMULATED RICHEXPERIENCE,THE PRODUCTION OF BLADE WITH EXCELLENT TECHNOLOGY AND RELIABLEQUAL-ITY HAS WON THE CUSTOMER'S WIDELY RECOGNIZED. 3Z series cultivator can be used for corn, soybean, cotton, potato and other crops between the field tillage operation, can be completed at one time ploughing, deep loosening, ditching, ridging and other fields. It has the characteristics of convenient row spacing adjustment, flexible depth control, convenient ridging width adjustment and wide application range.
If there is any needs or questions, feel free to contact me via email or phone, will send you a catalog for reference.
Detailed Photos
Product Parameters
| Model | 3Z-2 | 3Z-3 | 3Z-4 | 3Z-5 |
| Working width(mm) | 1100 | 1900 | 2900 | 3700 |
| Working depth(mm) | 100-200 |
| No.of tines | 2 | 3 | 4 | 5 |
| Ridging of rows | 1 | 2 | 3 | 4 |
| Total weight(kg) | 90 | 120 | 150 | 190 |
| Matched power(hp | 18 | 20-30 | 40-50 | 70-80 |
| Linkage | Three-point suspension I type | Three-point suspension II type |
Application
Packaging & Shipping
Company Profile
>>
