Basic Info.
Transmission
Hydraulic Transmission
Maximum Digging Height
2853mm
Maximum Digging Depth
1766mm
Max Digging Radius
3092mm
Bucket Digging Force
90.7kN
Min. Tail End Slewing Radius
747 mm (29 in)
Max. Tearout Force
4.5 kN (1,012 Lbf)
Max. Tilt-out Height
2,008 mm (79 in)
Upper Carriage Width
730 mm (29 in)
Transport Length
2,747 (9′)
Stick Length
890 mm (35 in)
Max. Reach at Ground Level
3,046 mm (10′)
Transport Package
Standard Ocean Freight
Specification
2747*860*2261mm
Production Capacity
500piece/Year
Packaging & Delivery
Package Size
274.70cm * 86.00cm * 226.10cm
Package Gross Weight
2396.000kg
Product Description
product title

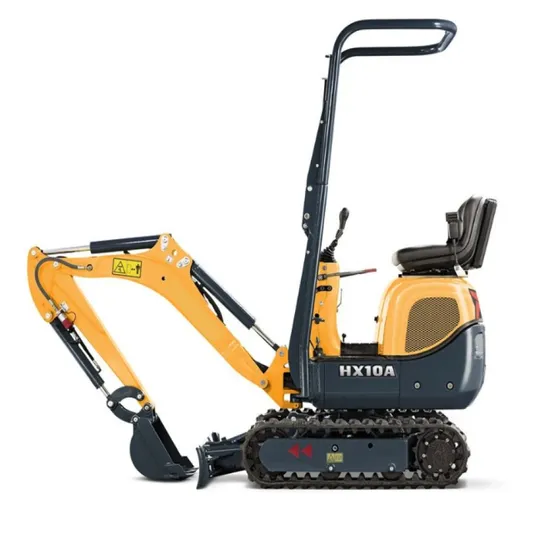

HYUNDAI Mini Crawler Excavator HX10A
Product Description
HX10A, can work through any door and any building with retractable dozer and track, foldable safety bar. Size of the machine is ideal for demolition and remodeling inside buildings, with standard breaker piping. Also HX10A can pass any door with the retractable undercarriage and foldable ROPS bar. Contact your dealer to find out how the HX10A can help you work more efficiently, productively and safely . The top mounted boom cylinder as well as the hoses routed inside the boom provide extra to avoid damage. Breaker piping is standard, ideal machine to use hammer inside à building.
HX10A is operated with optimum fuel efficiency and minimal emissions to ensure compliance with environmental regulations. This little workhorse has been designed to ensure extreme versatility and to work with maximum efficiency every day and in almost all environments.
Product Parameters
Max. reach at ground level
| 3,046 mm (10')
|
Stick length
| 890 mm (35 in)
|
Transport length
| 2,747 (9')
|
Gross Power
| 9.9 kW (13.3 HP) at 2,100 rpm
|
Upper carriage width
| 730 mm (29 in)
|
Max. digging height
| 2,853 mm (9' - 4')
|
Max. tilt-out height
| 2,008 mm (79 in)
|
Max. digging radius
| 3,092 mm (10' - 2')
|
Max. tearout force
| 4.5 kN (1,012 lbf)
|
Min. tail end slewing radius
| 747 mm (29 in)
|
Detailed Photos
